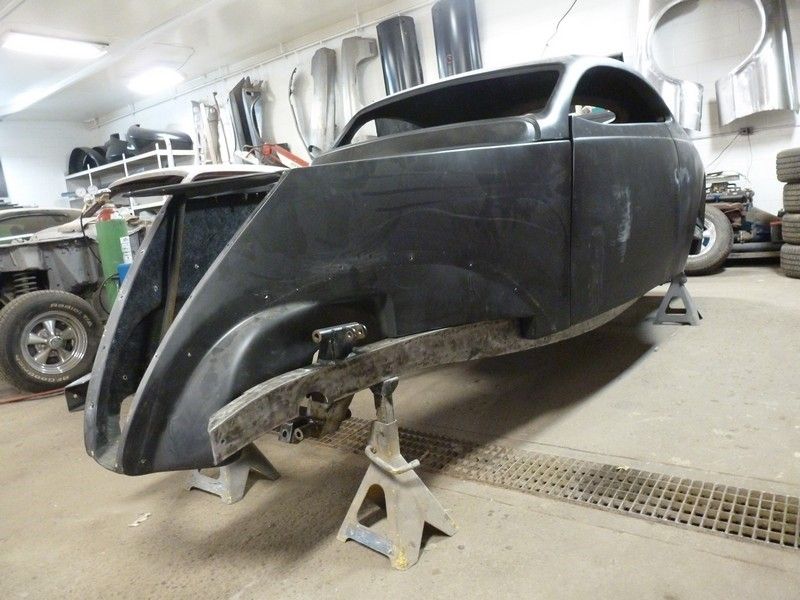

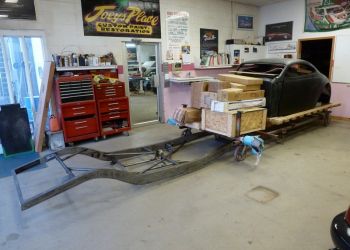

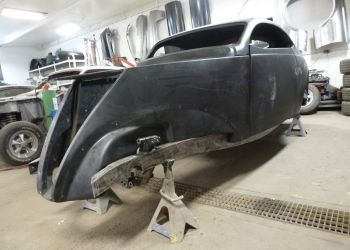

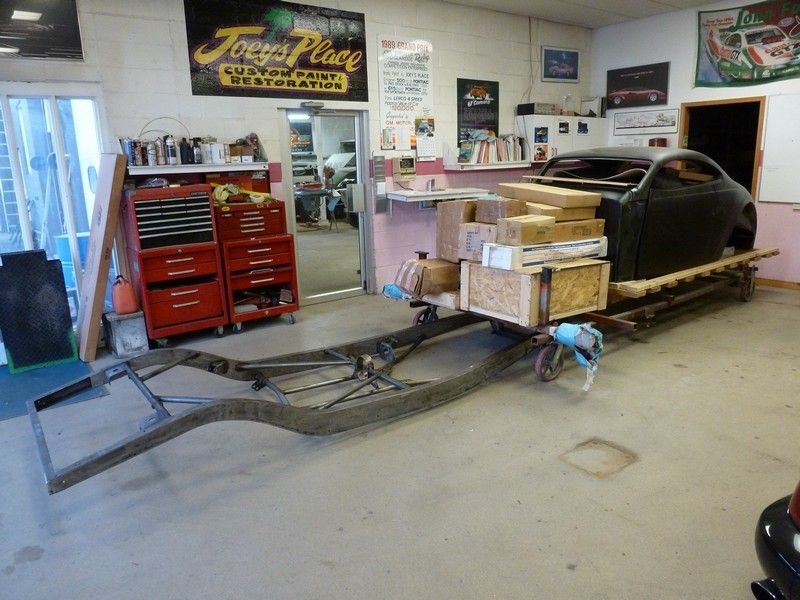

The body gets set up on the frame for assessment.

The body needs modifications.

This hot rod build is one of our new major projects. Our customer wants a long list of one of a kind touches. We are mocking up the body and planning changes to the wheel openings. This is a totally personalized build.

Eric Brockmeyer works with our customer and Joey to produce this rendering. The paint color has not been firmed up yet.

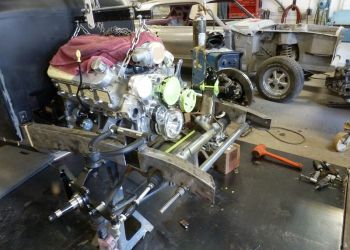

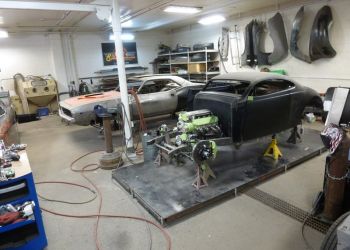

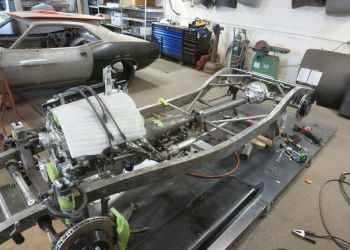

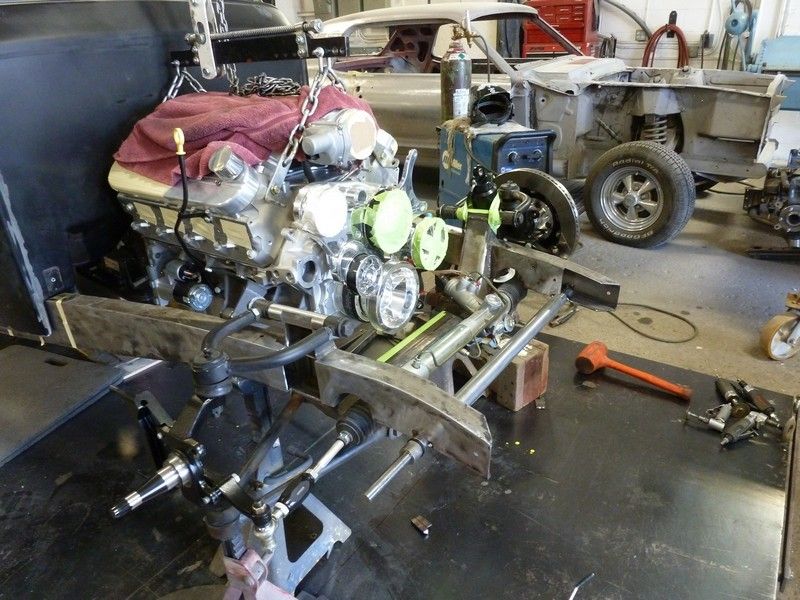

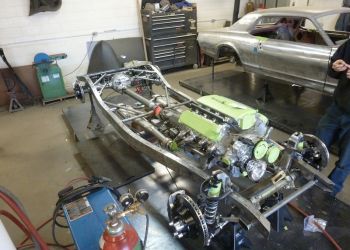

At this stage the engine and transmission get mocked up.

Yes-cutting into the frame for needed modifications.

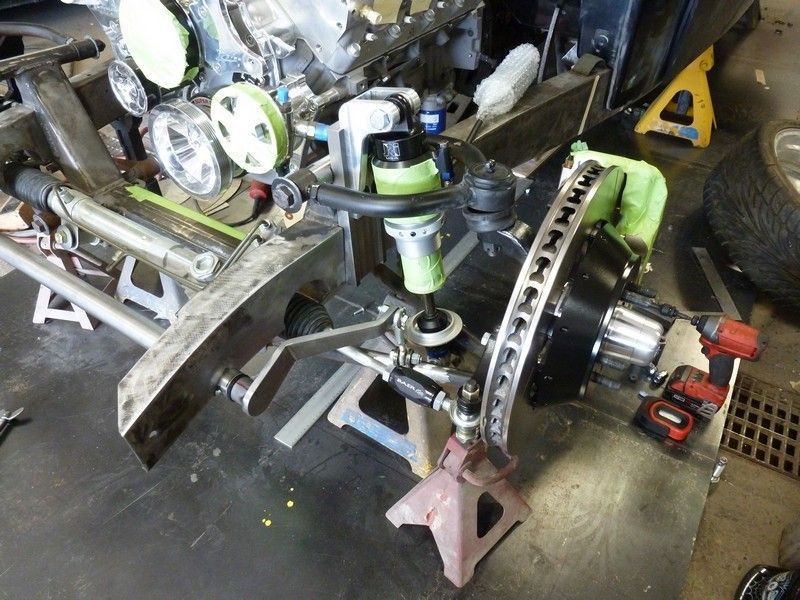

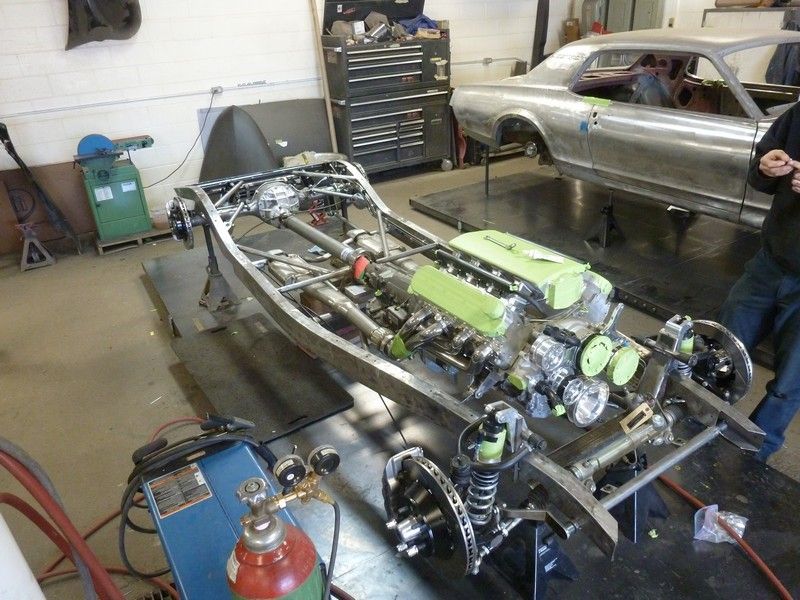

Mocking up the suspension, brakes and steering.

Not much room-tight fit.

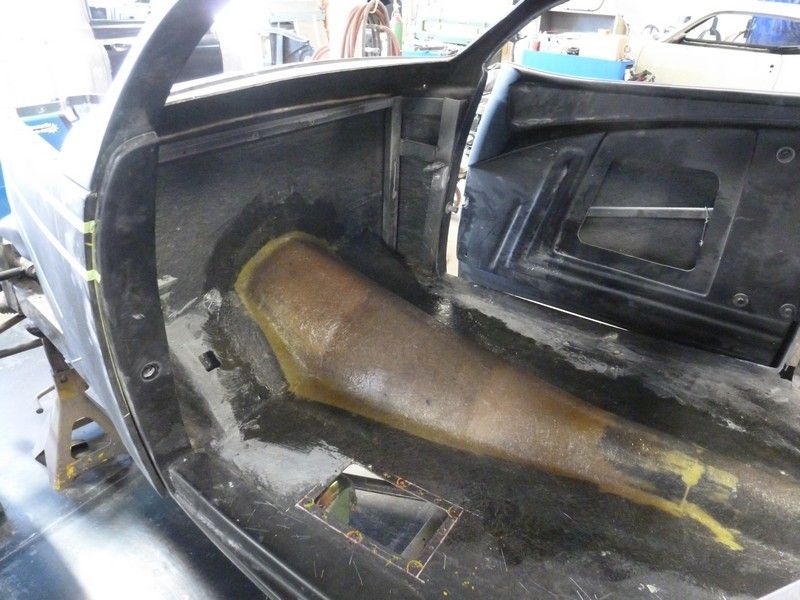

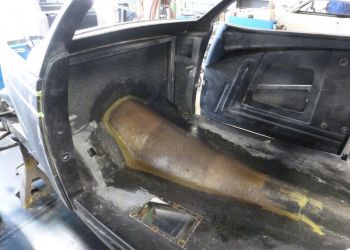

The floor tunnel gets enlarged for the tranmsission.

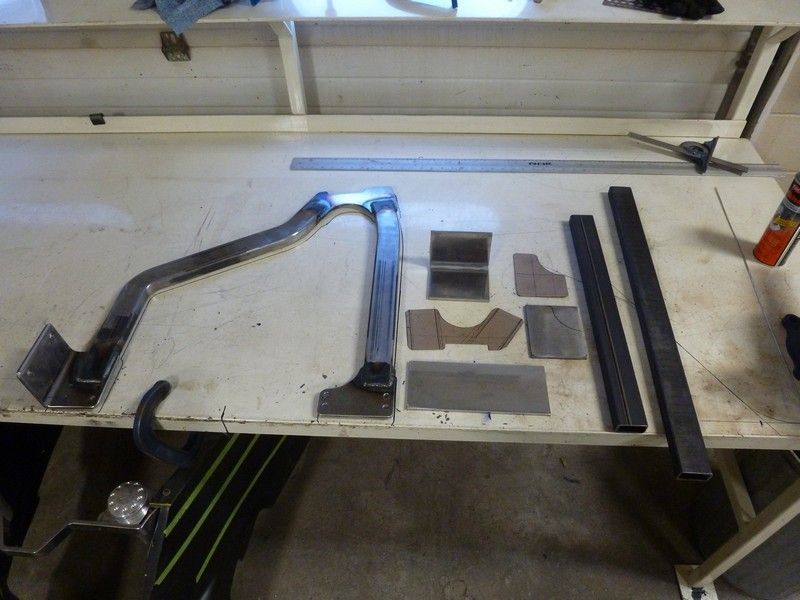

Fabrication work for the inner steel skeleton adds needed strength.

Fabrication of inner structure to add strength continues.

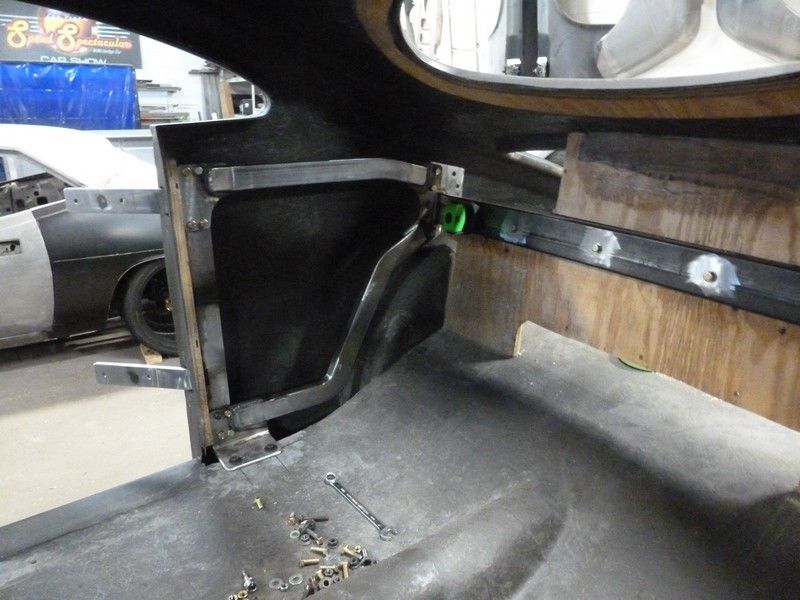

Installing inner skeleton-fully designed and built in house.

The starting point!

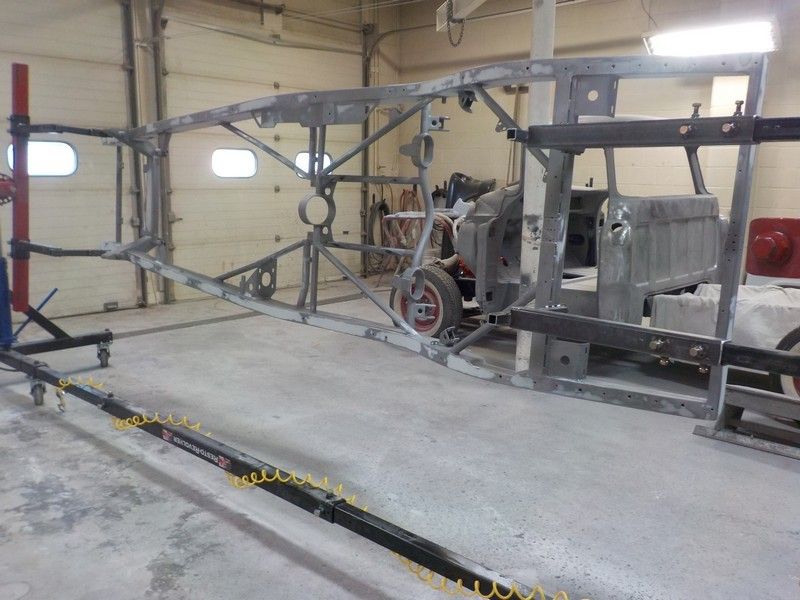

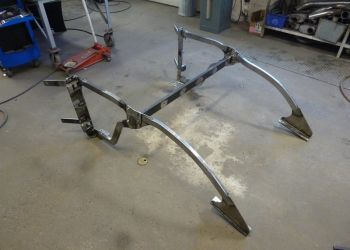

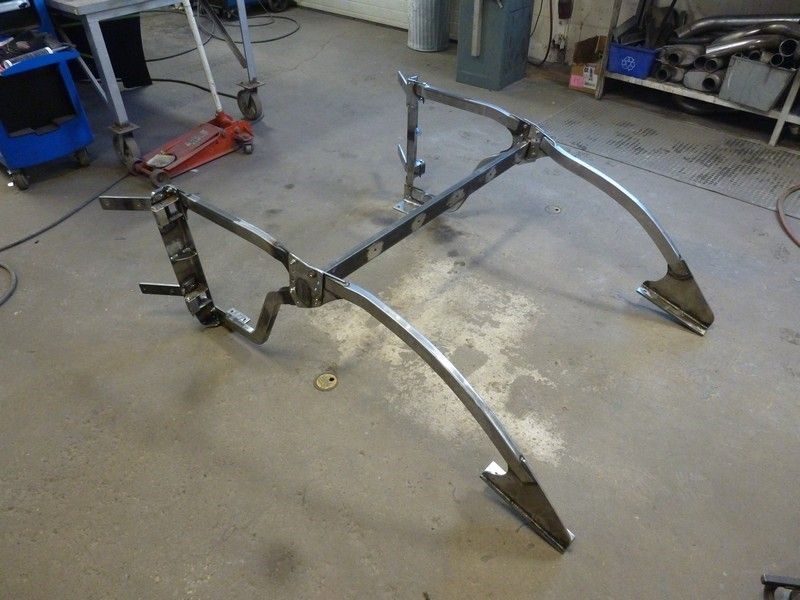

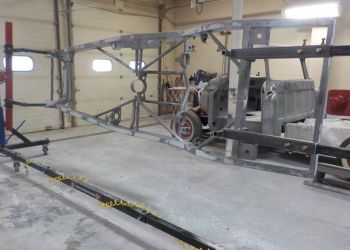

The complete skeleton for required strength.

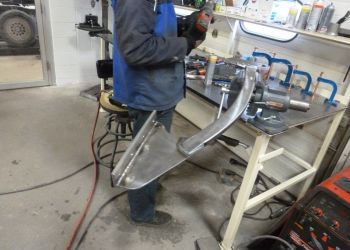

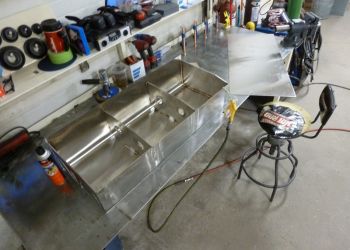

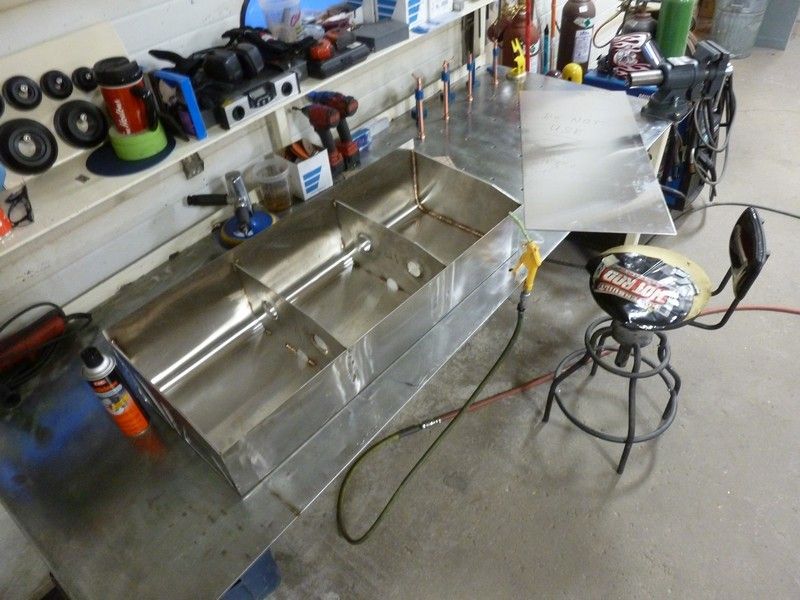

Fabrication for the gas tank.

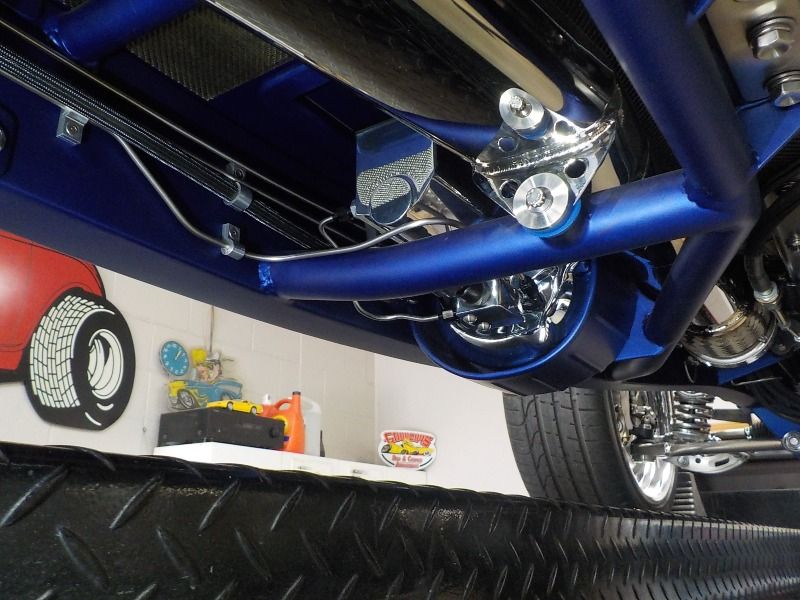

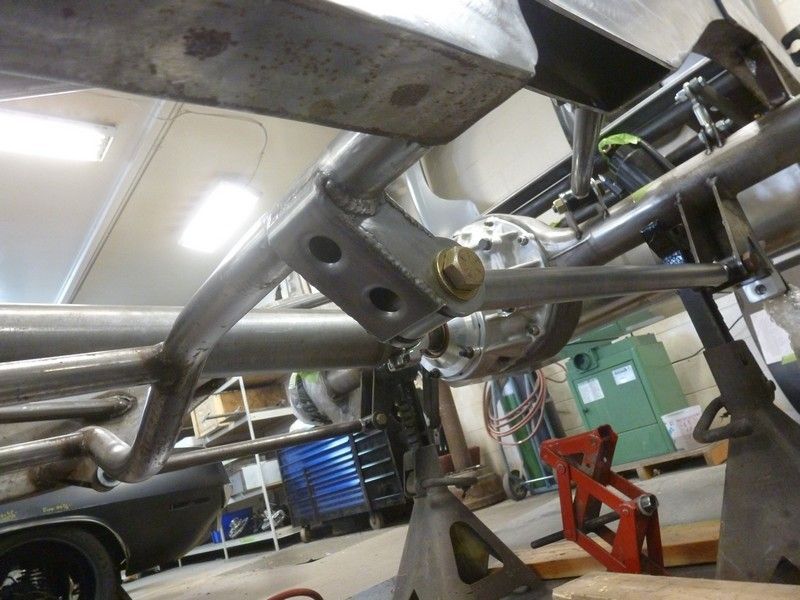

Rear suspension.

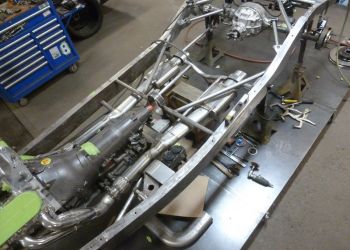

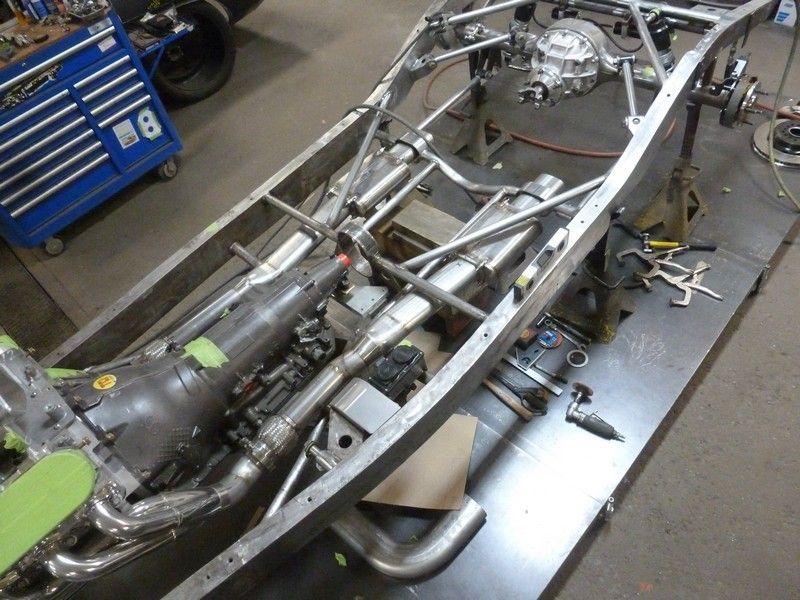

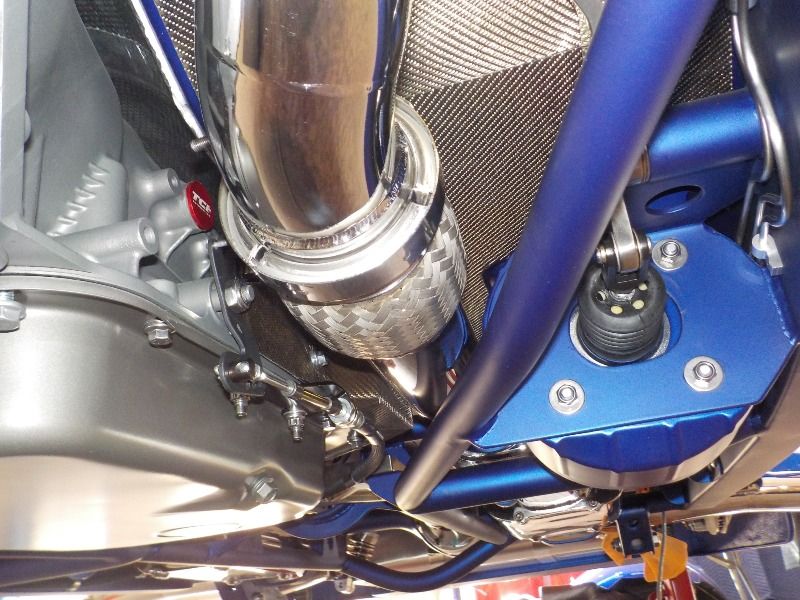

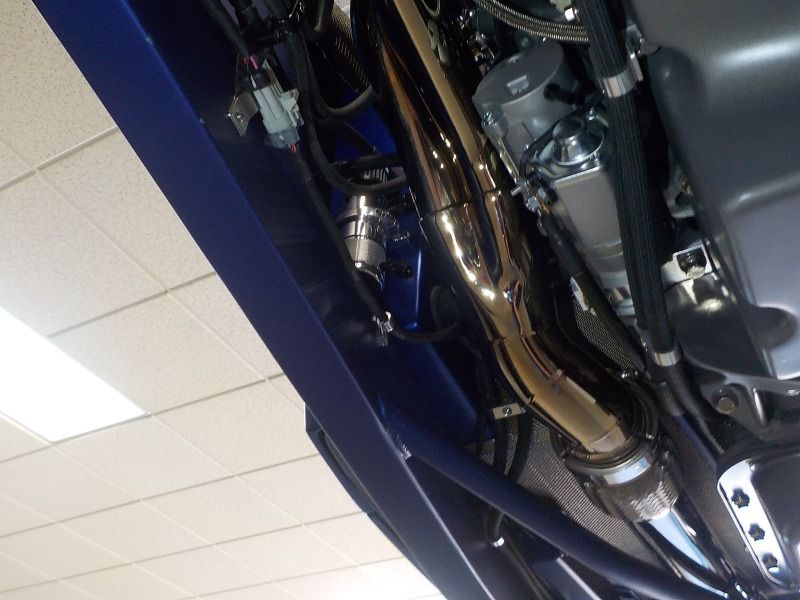

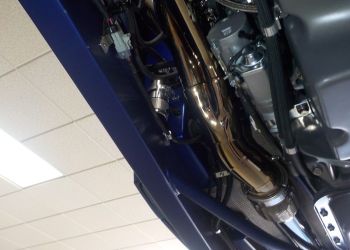

Exhaust system-3" stainless

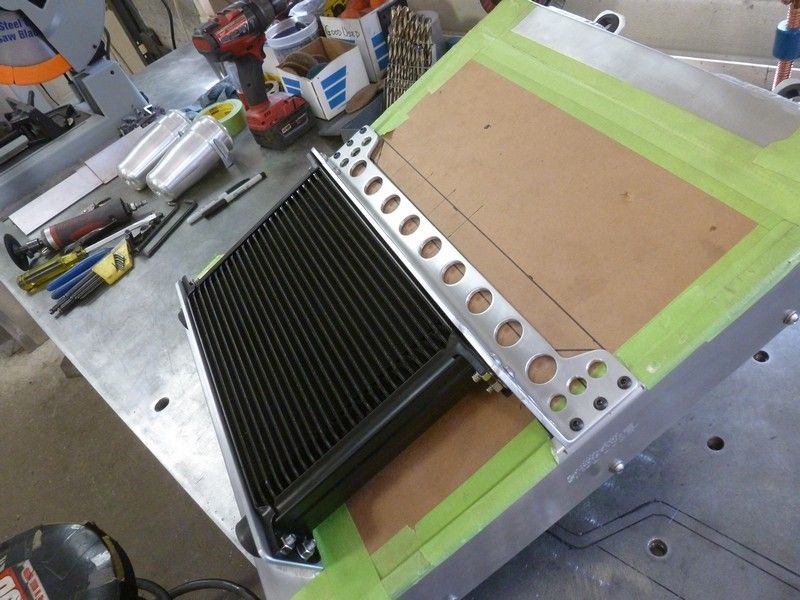

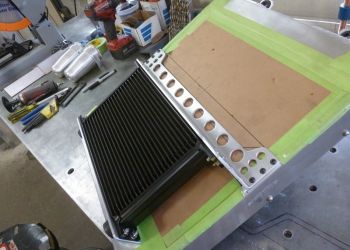

Fabrication work includes core support and A/C condensor mounting.

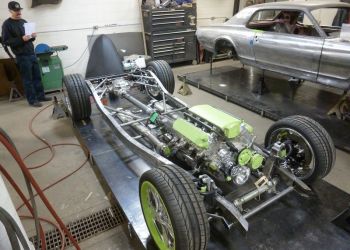

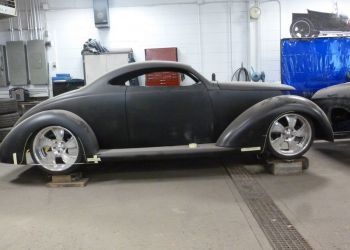

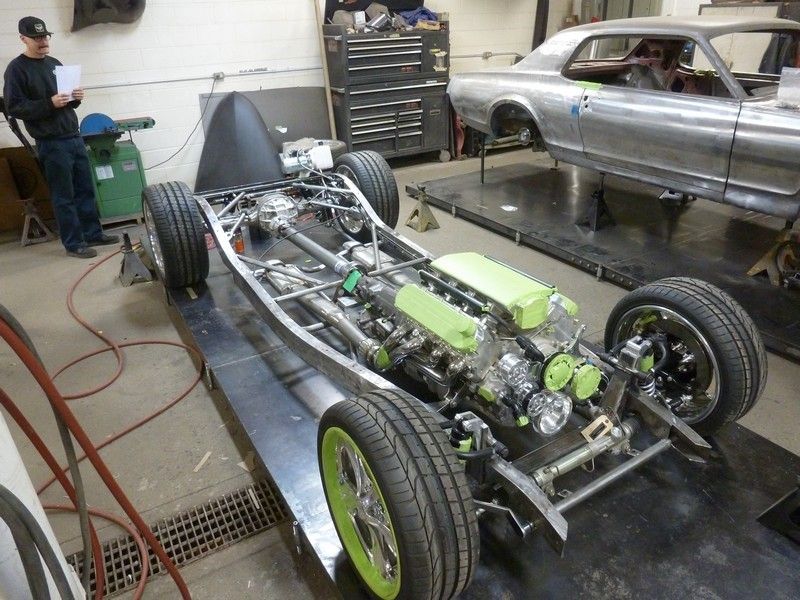

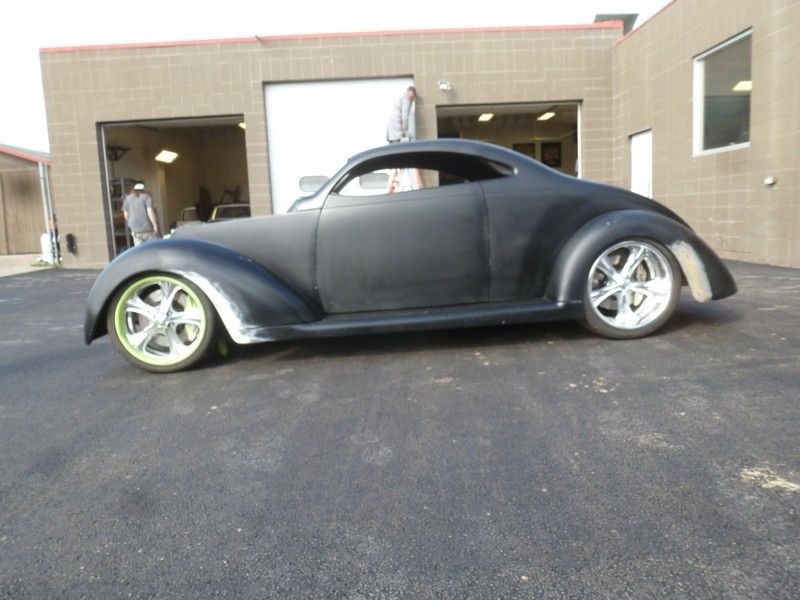

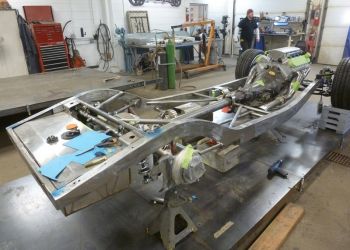

Chassis on the ground.

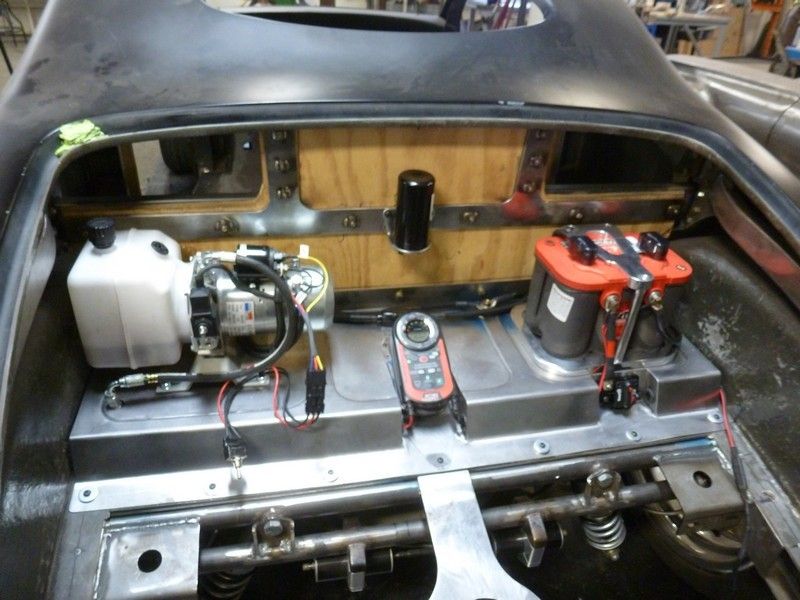

More fabrication work for  mounting the hydraulic suspension and the battery.

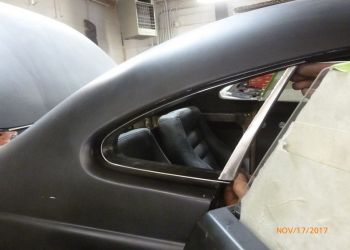

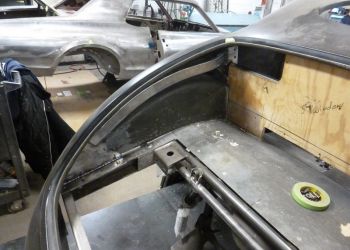

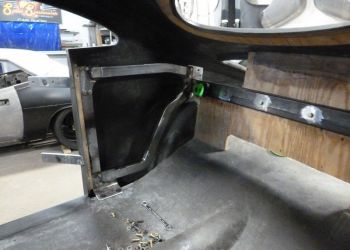

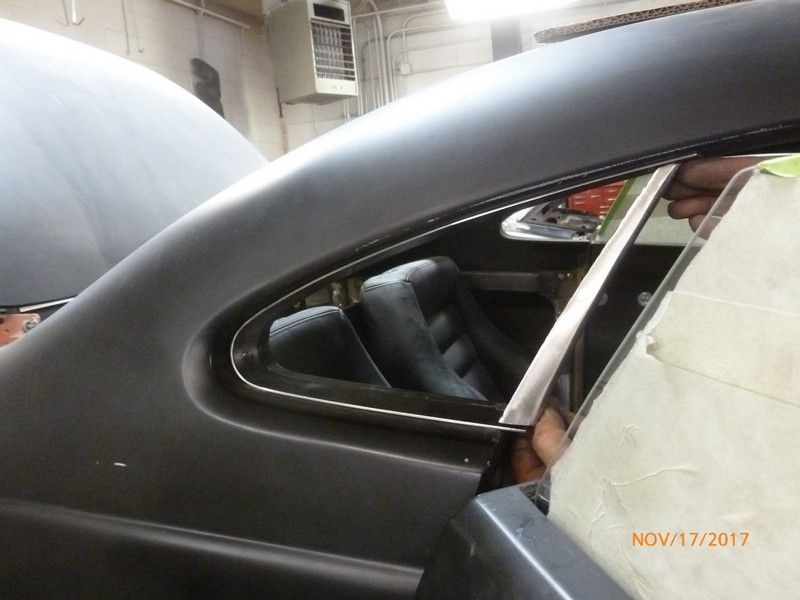

Fabricating rear quarter glass mounting frame.

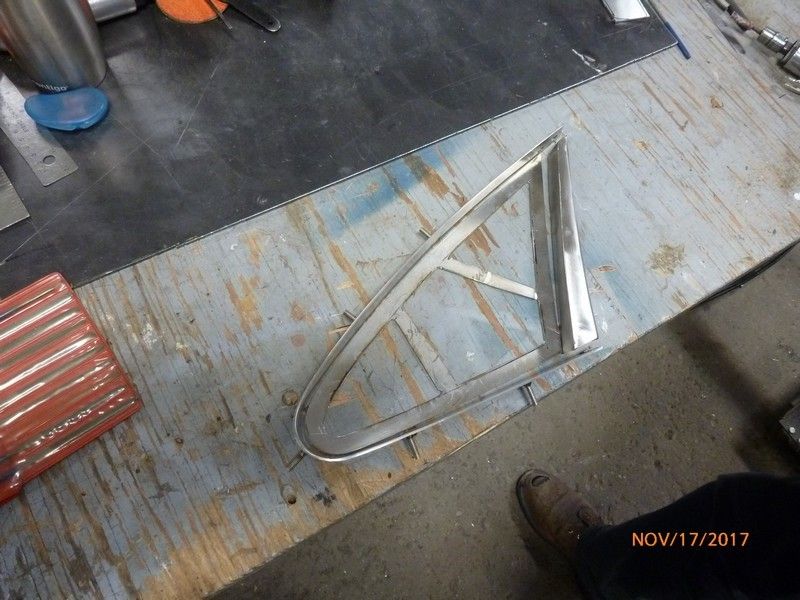

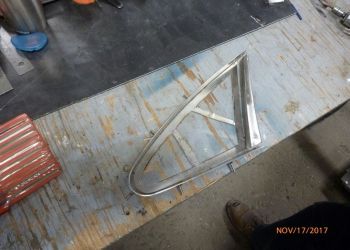

Fabricated quarter glass frame.

The wiring work begins. There are many componemts to be considered for the over all design and layout to make it all work as intented.

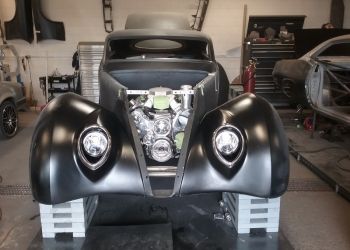

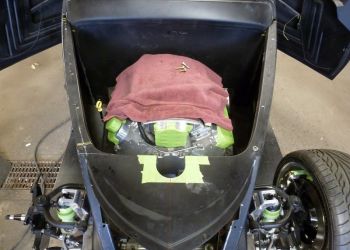

This is a great shot of the front of the car--everything fits tightly.

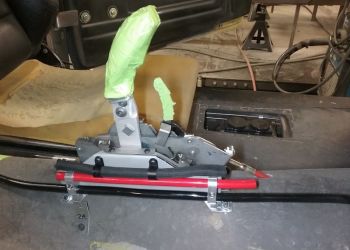

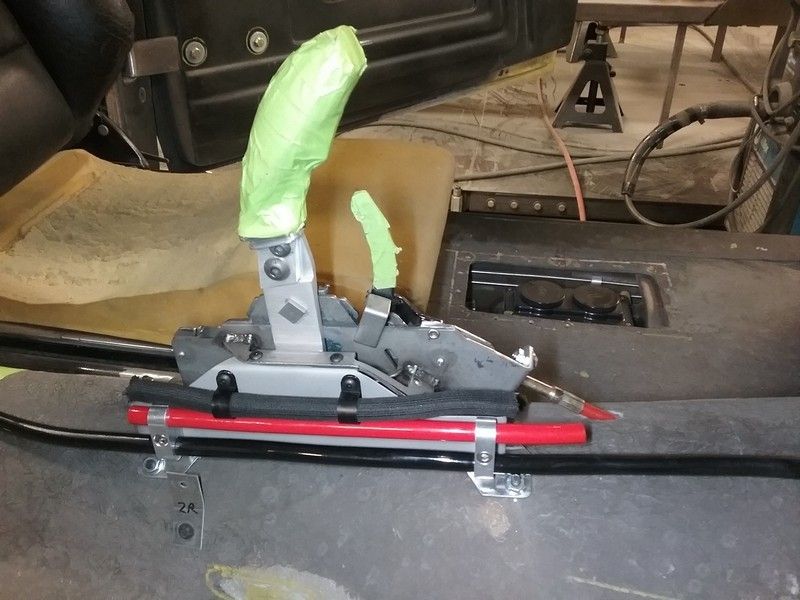

Placement of the shifter.

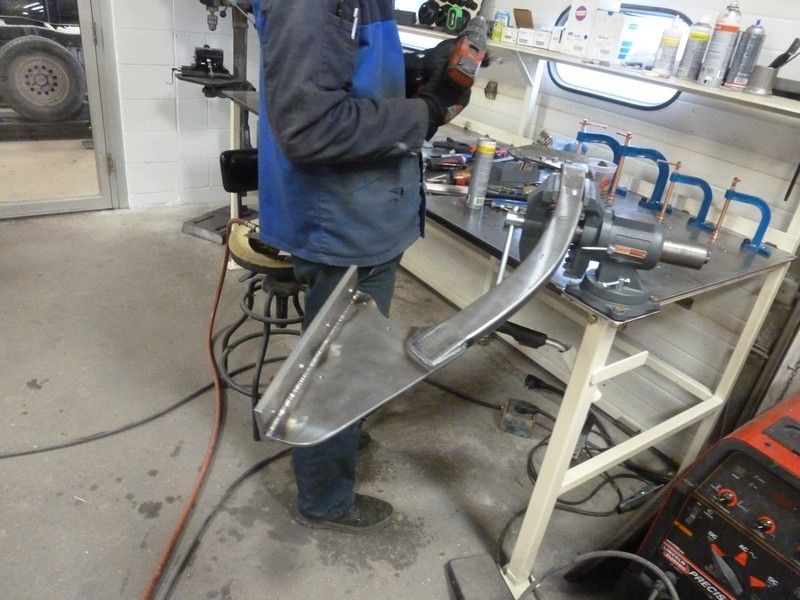

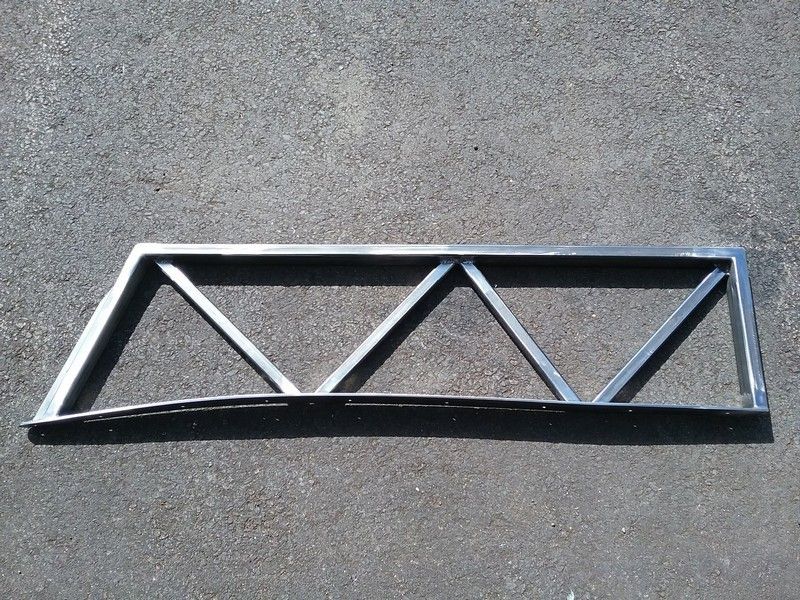

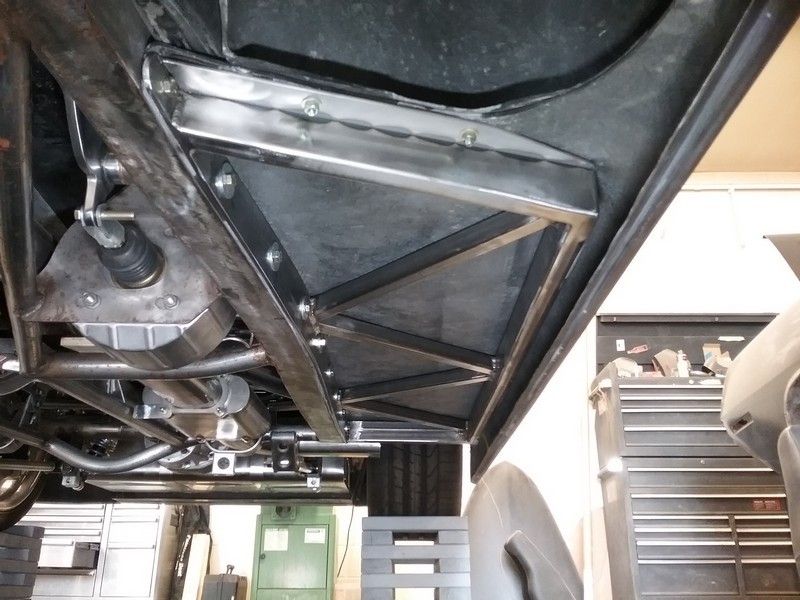

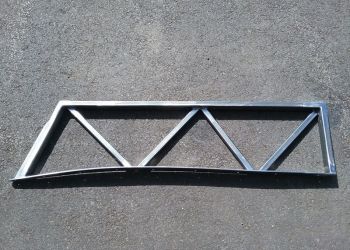

Fabrication work for support under both running boards.

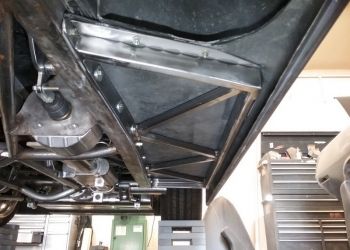

The running board supports are installed.

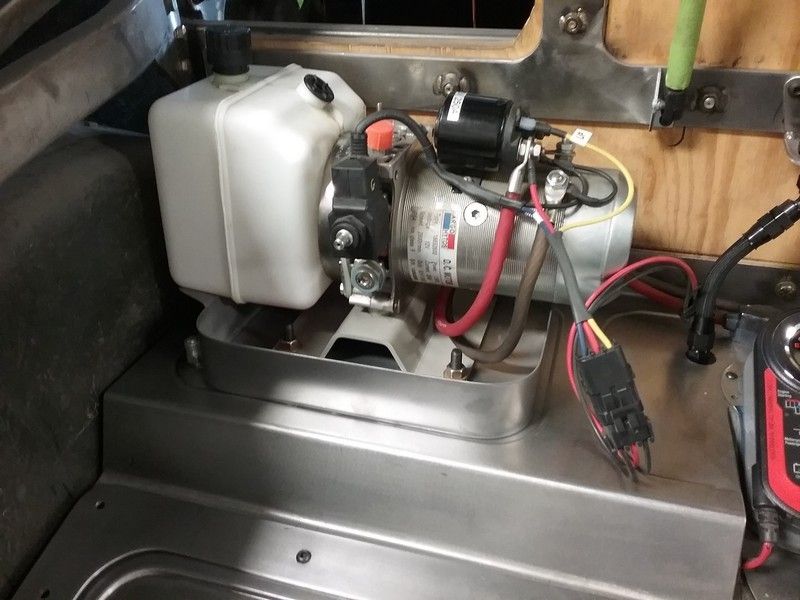

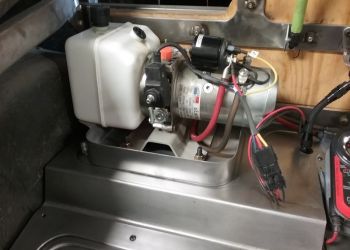

Hydraulic pump- work includes building a system that permits the car to be lifted two inches. With the flip of a switch there is increased ground clearance.

The body did not come with any window regulators, tracks, door latches or safety pins that were worth using so we designed and built what was needed.

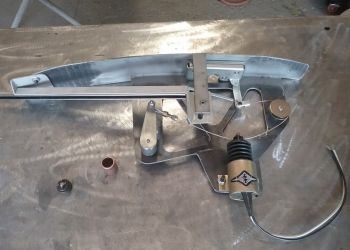

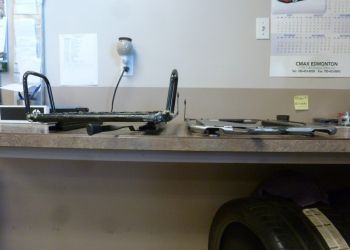

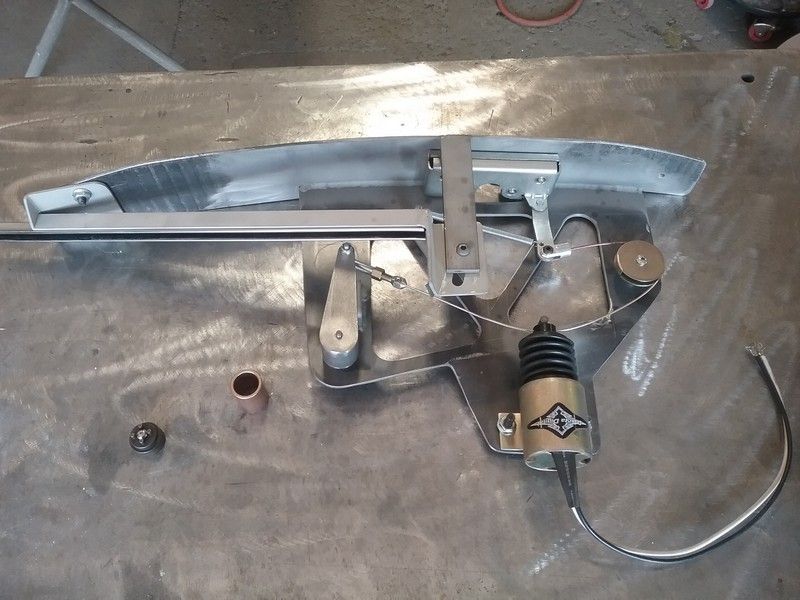

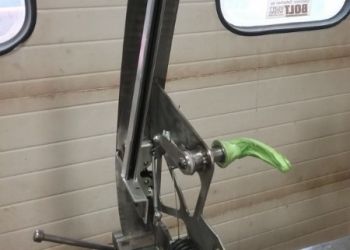

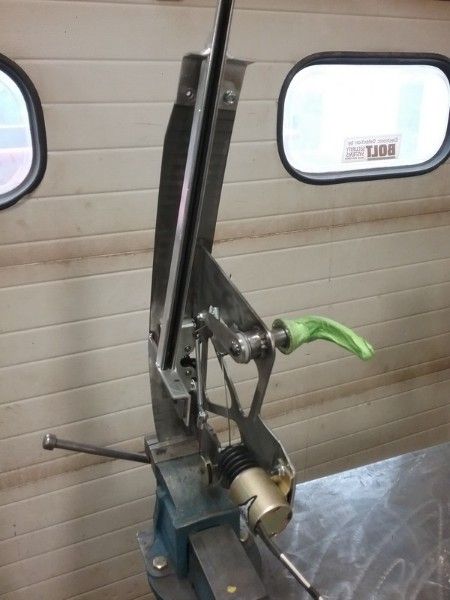

Power window mechanism

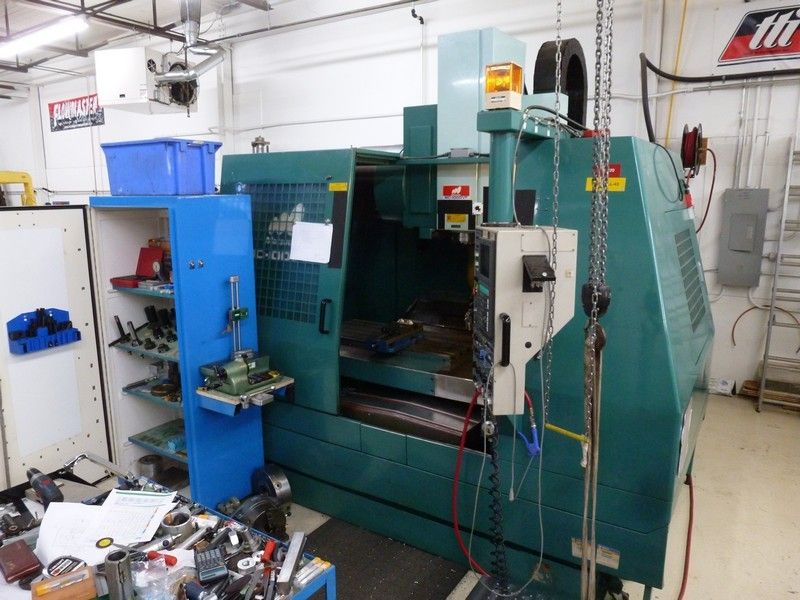

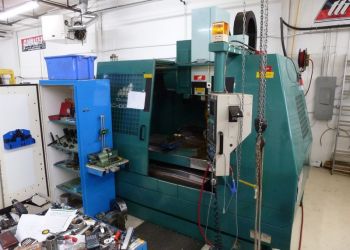

A very valuable piece of equipment for the many one of a kind parts that must be built for this car. Thanks Tony

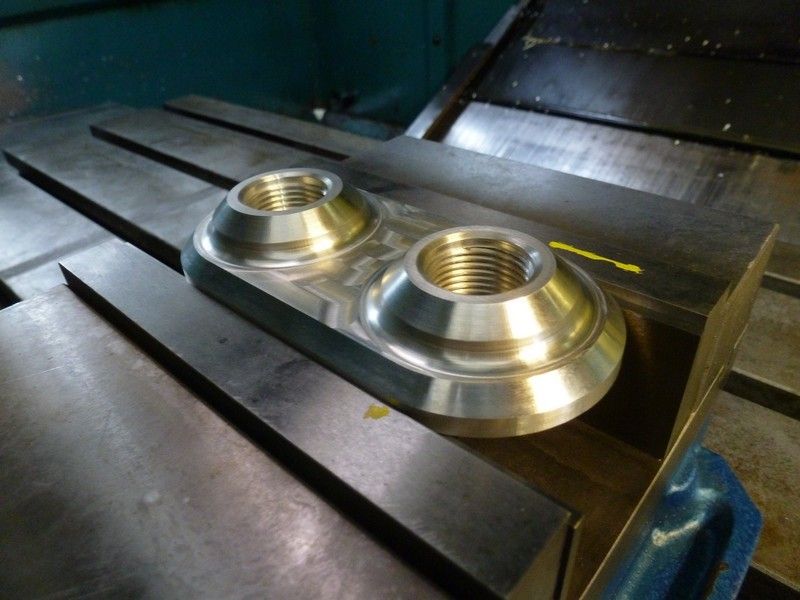

Speaking of parts that need to be made!

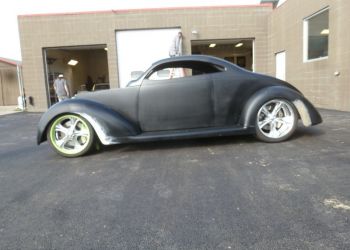

Checking the ride height.

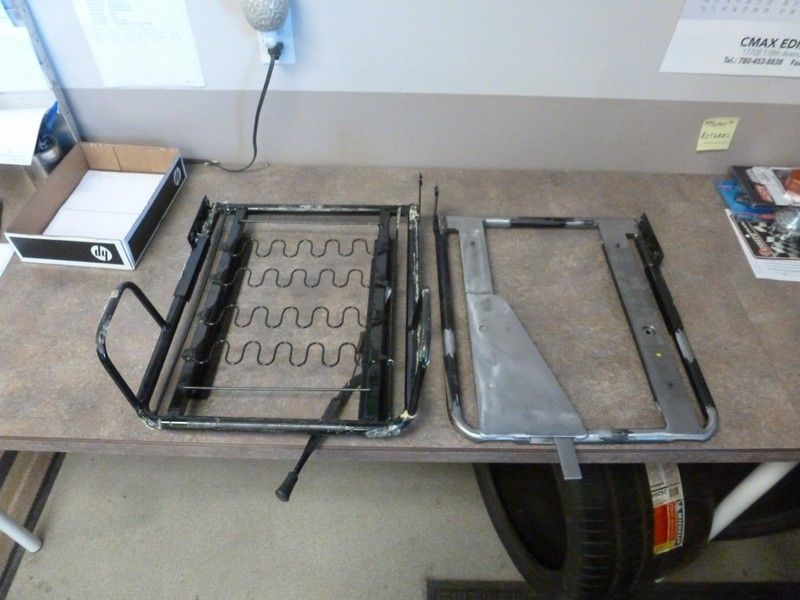

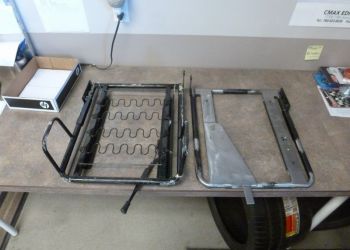

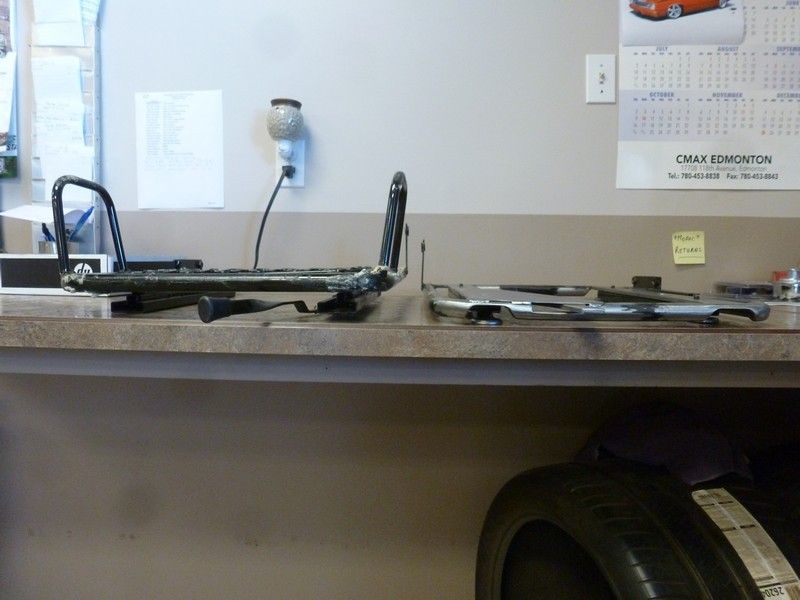

Modifying the seat mounts.

Modifying the seat mounts for this application.

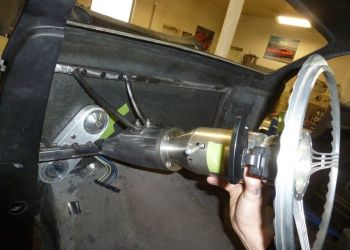

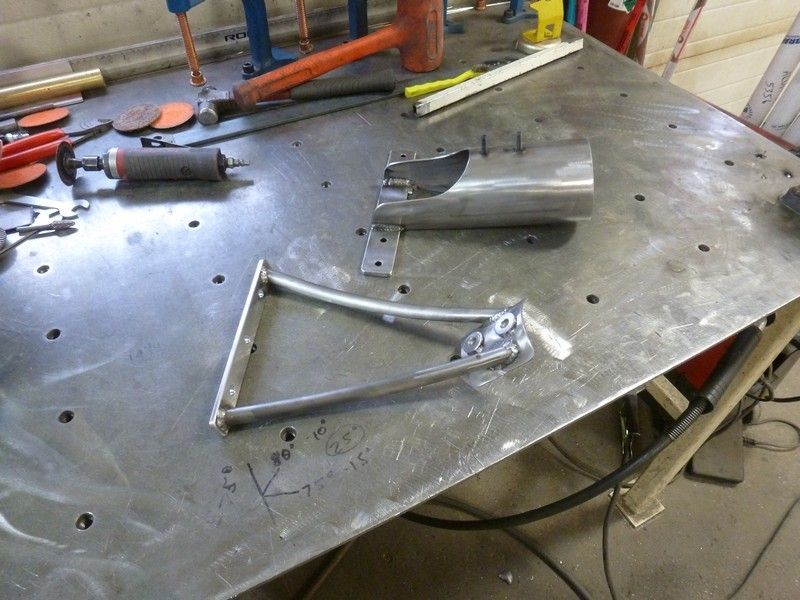

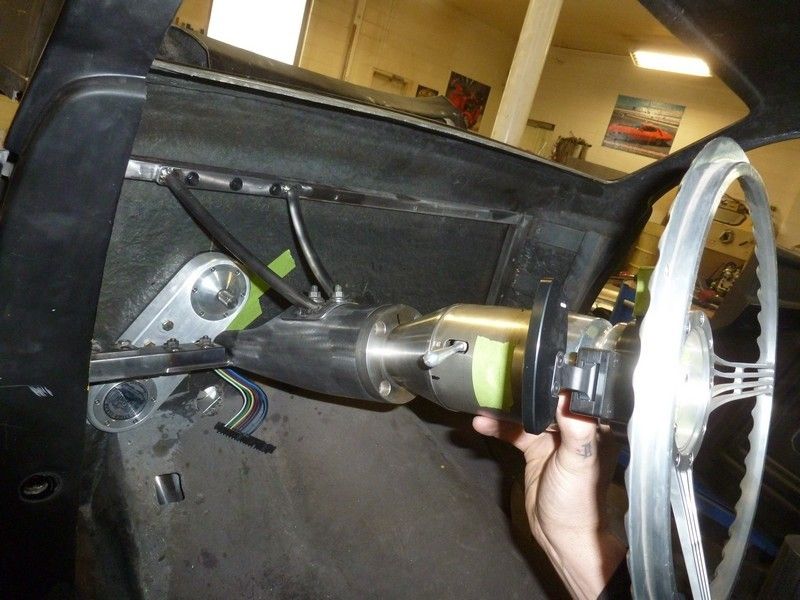

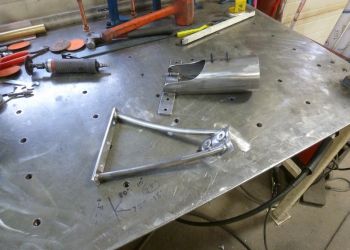

Fabricating steering column mount.

Fabricatiing steering column mount.

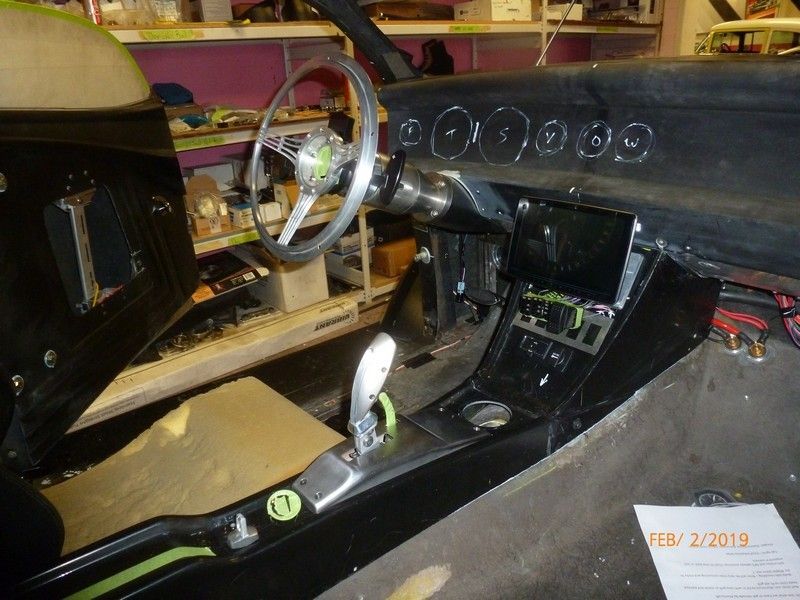

Dash and console fabrication.

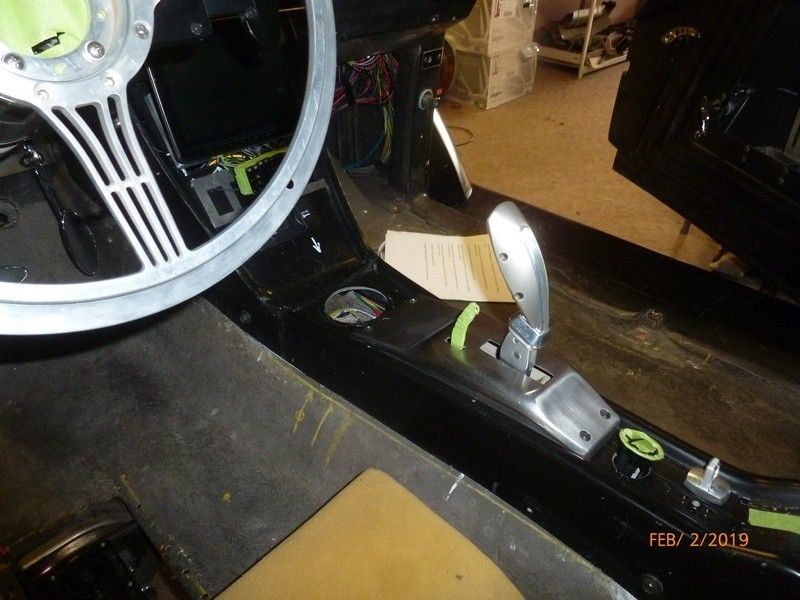

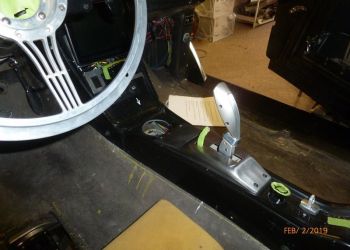

Like many items for this build the shifter base is built from scratch

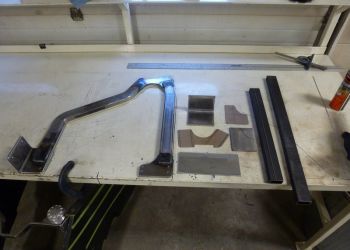

Built from scratch-plan-design and build.

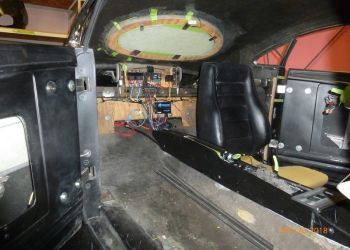

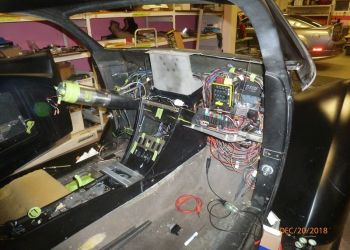

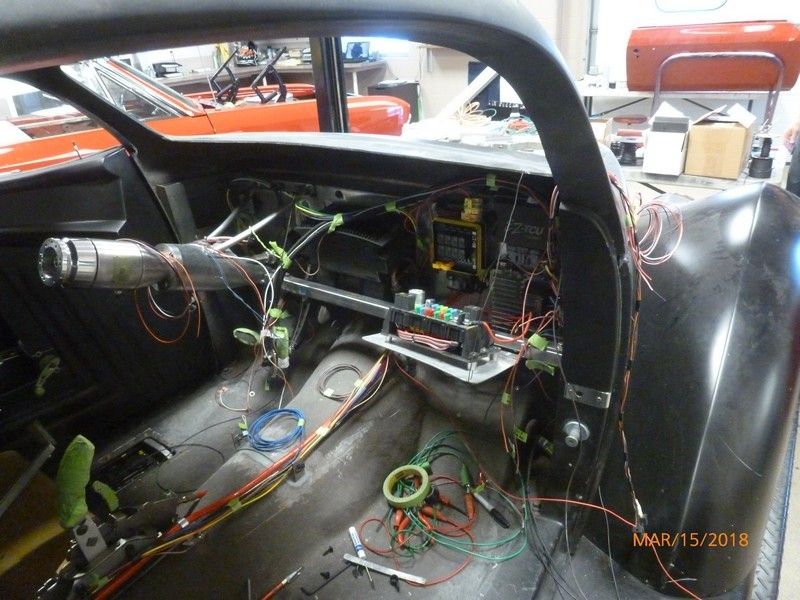

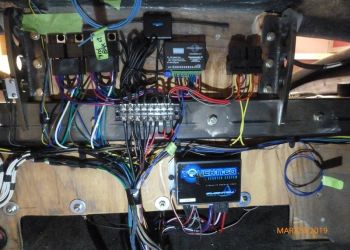

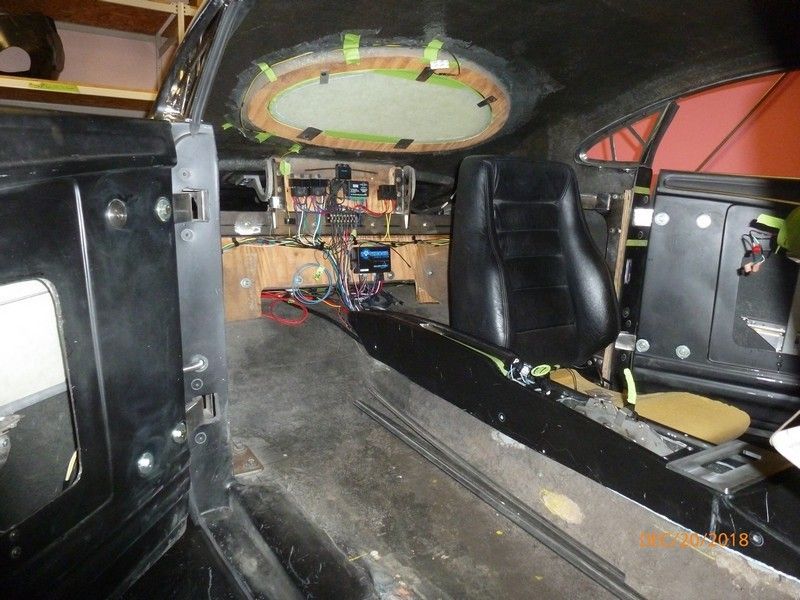

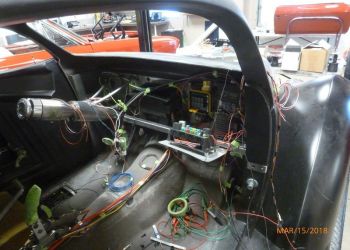

Wiring expertise is certainly needed with this build. Wiring will be very tidy when finished.

The wiring process of this very major build cannot be underestimated. The challenges and creativity lend to this being a unique build as there is no off the shelf wiring assemblies etc.

This build requires much forthought for creating, buidling and implementing design ideas held well in advance of getting to this point.

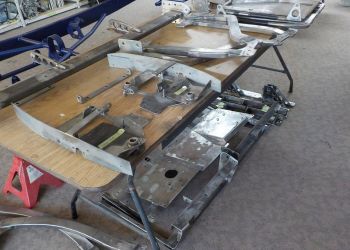

This picture shows the results of a planning, designing, and hand fabricating. Pieces includes window frames (power windows), firewall, rear firewall with back brace, and seat the frames.

The body requierd much work to get the lines and shape perfect meant reworking and rebuidling much of this fiberglass body. The current level of workmanship was needed.

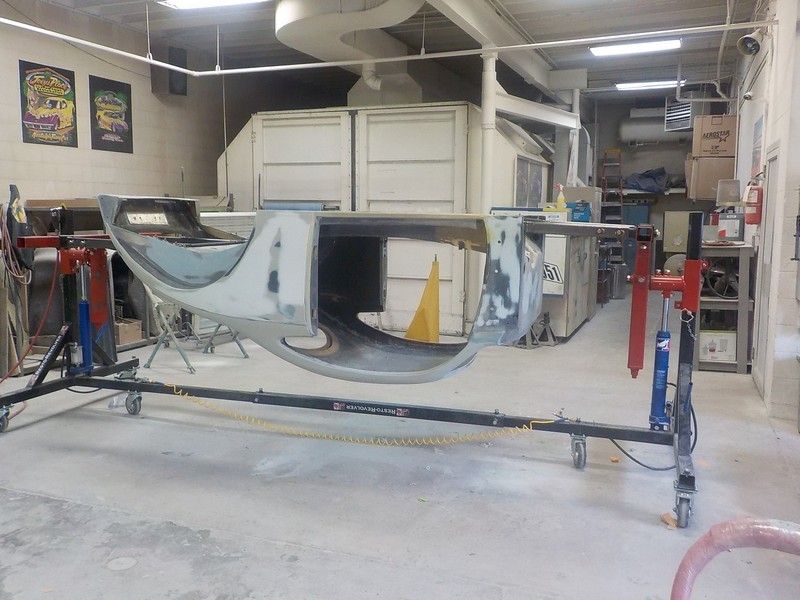

The underside of teh body also received mcuh work/attention.

And of course, the body work on all the panels.

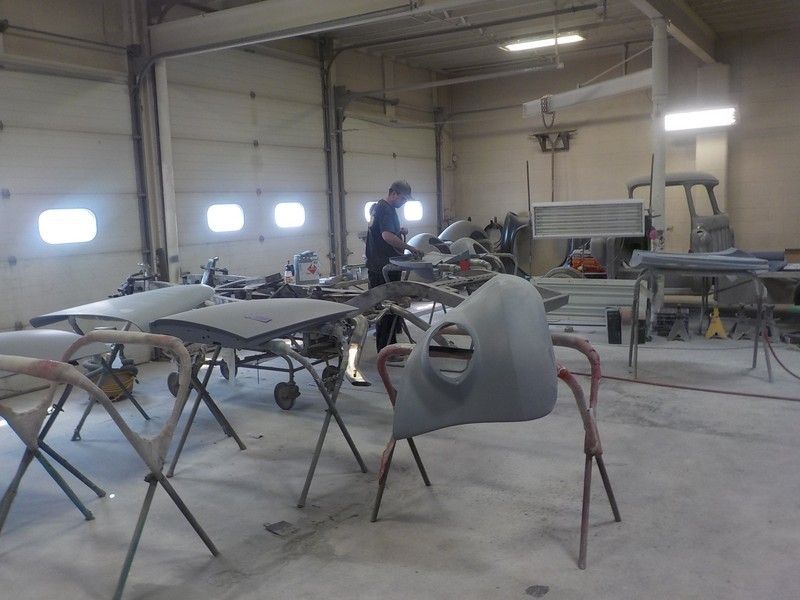

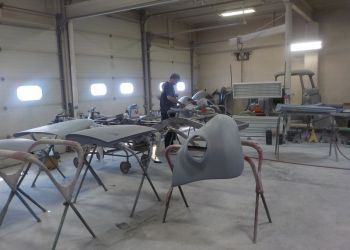

The prep area is large enough to lay out these large panels and efficiently work on them.

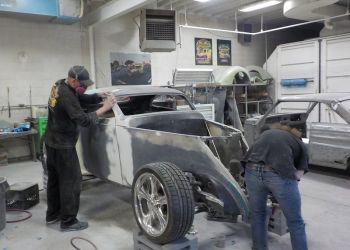

Teamwork is a driving force in this shop and is needed for most builds/projects at Joey's Place.

The body is sprayed in a high build polyester prime.

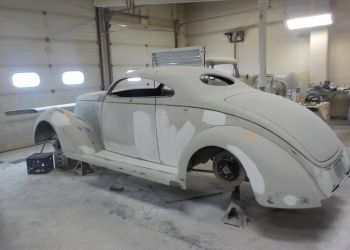

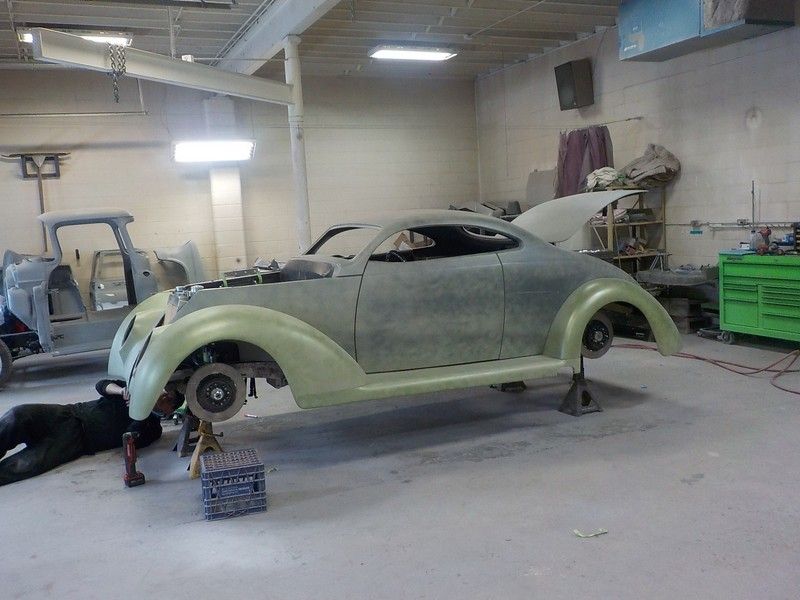

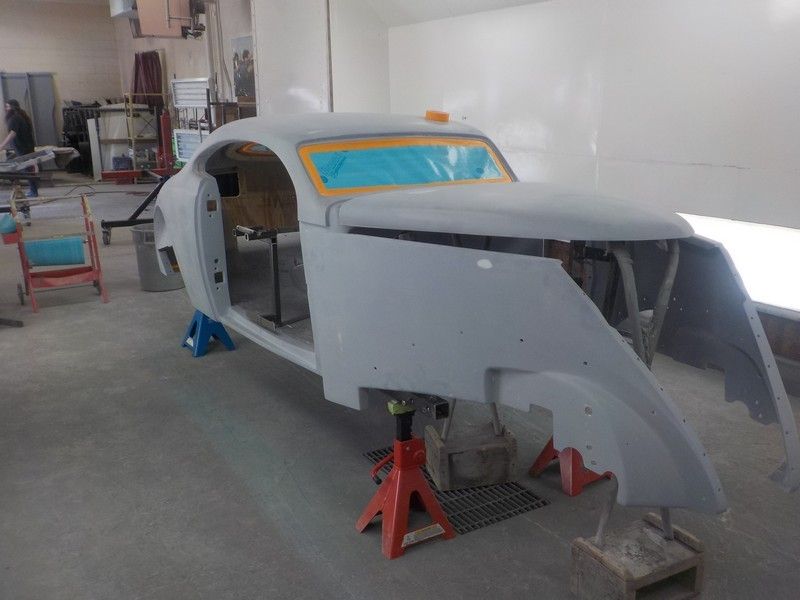

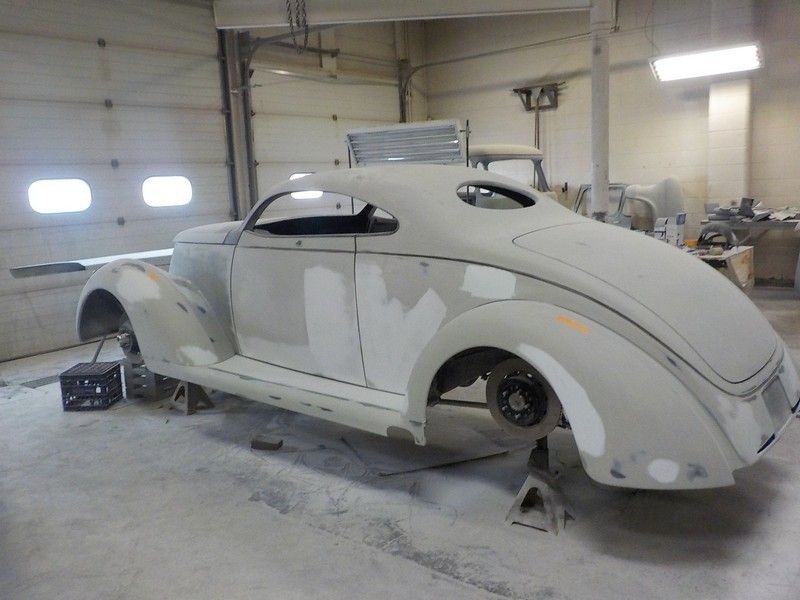

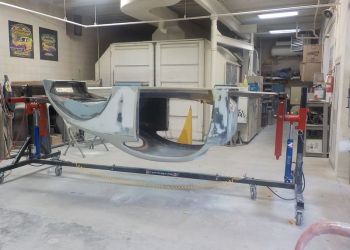

The body is mocked up for block sanding the high build polyester primer.

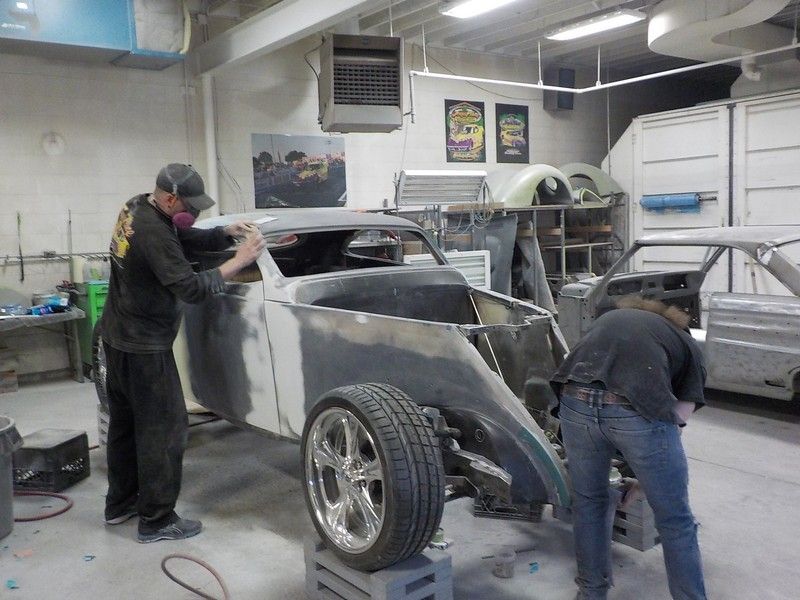

Block sanding using 180-240-320-400-500 grits.

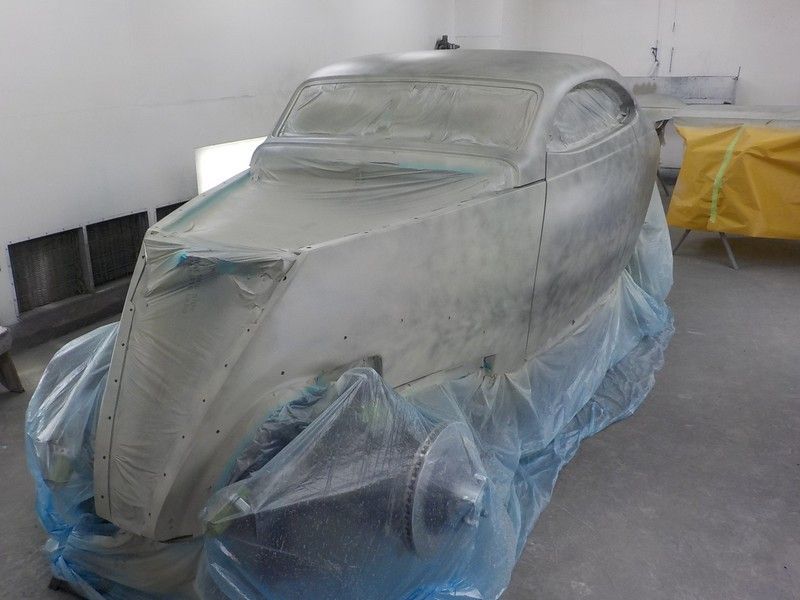

The body/panels go in and out of the booth various times throughout the prepping and painting procedures. Here the body is in for the final primer application.

Body is primed.

The framed has been prepped and sealed and ready for primer. This work includes filler work to all welds and imperfections.

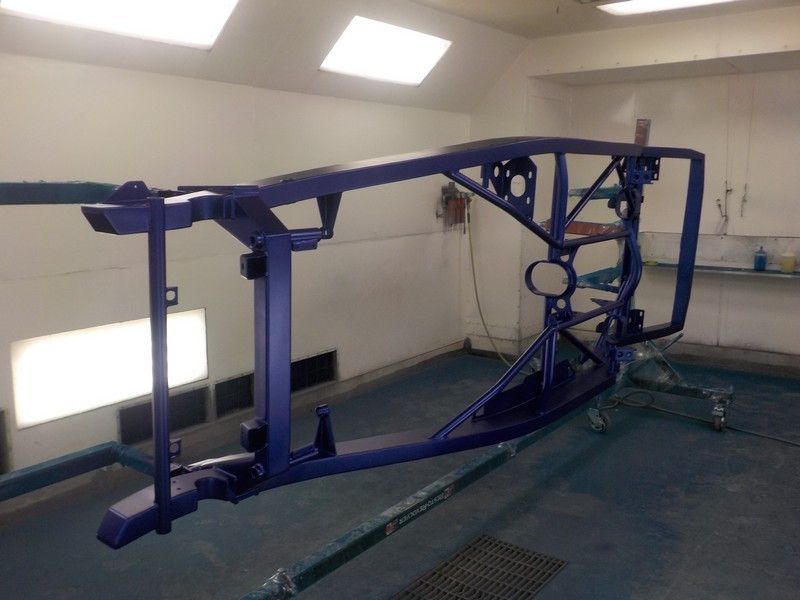

The frame is painted, and clear coated with a matt (flattening) agent.

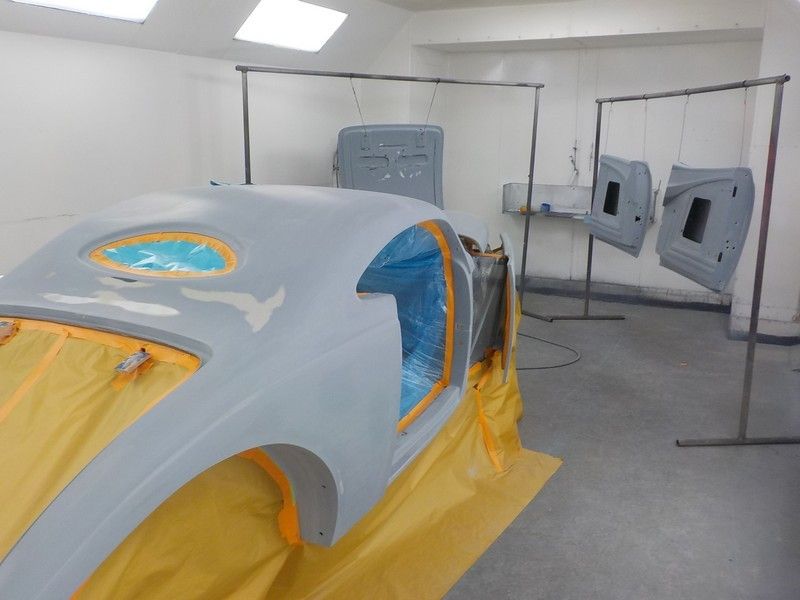

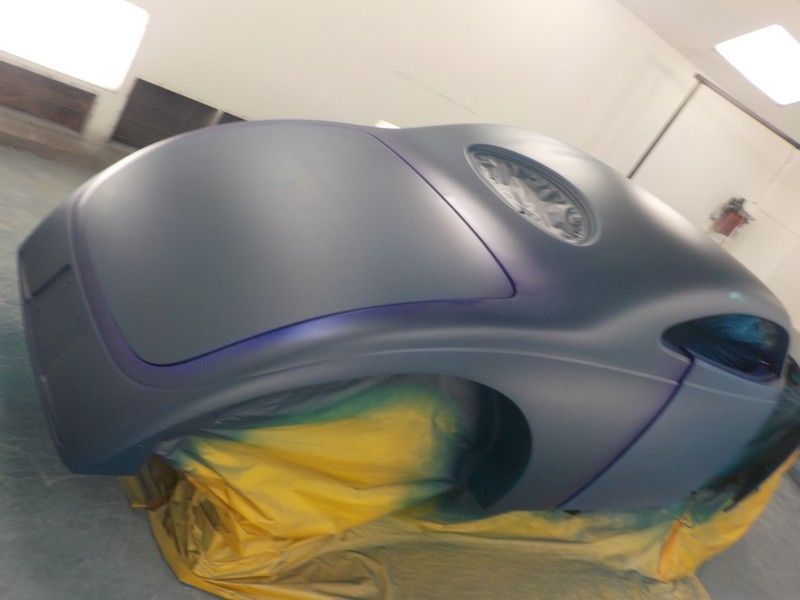

Here we have the body set up in the paint booth with sealer coat applied.

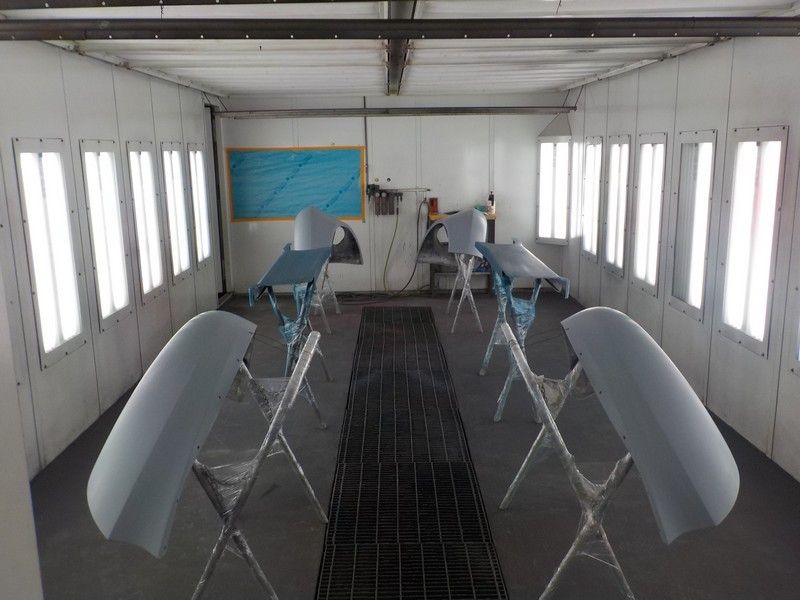

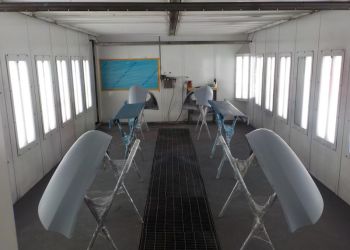

Here we have the body panels set up in the paint booth with sealer coat applied.

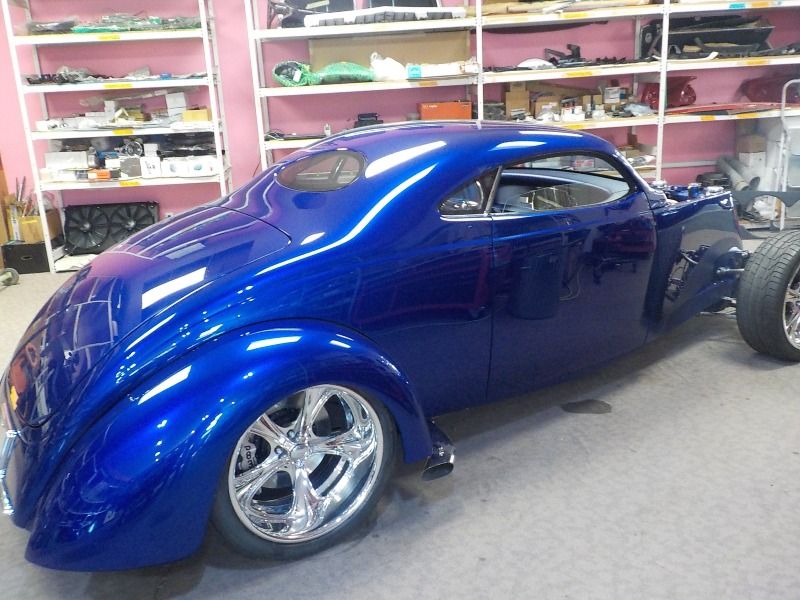

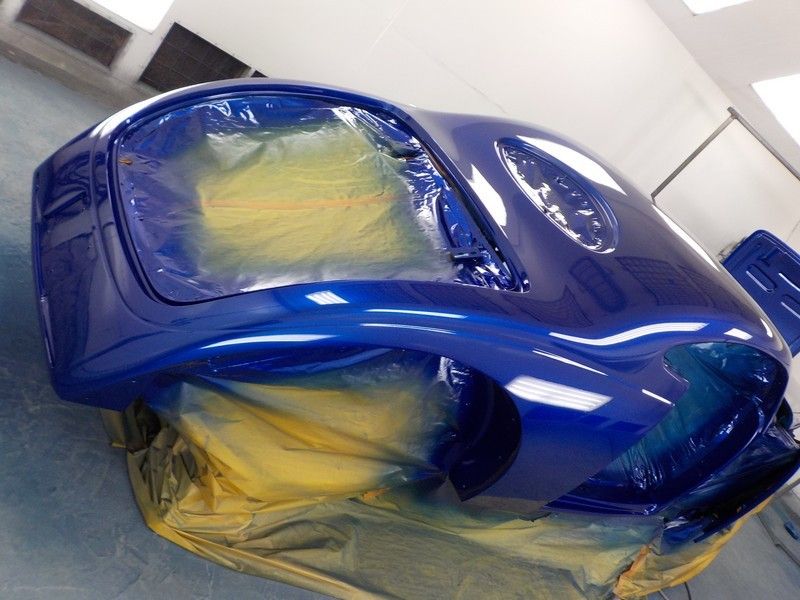

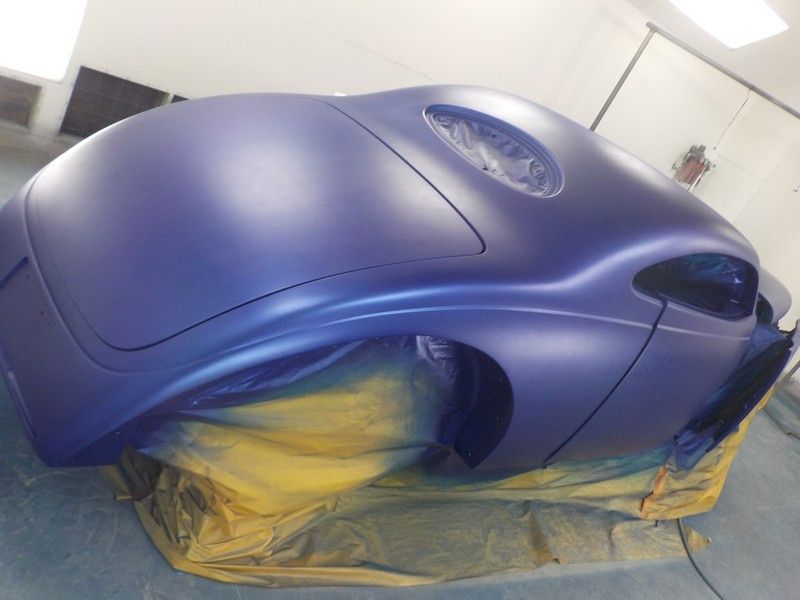

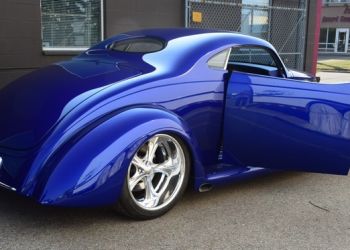

The body is paint with House Of Kolor Blue custom mix

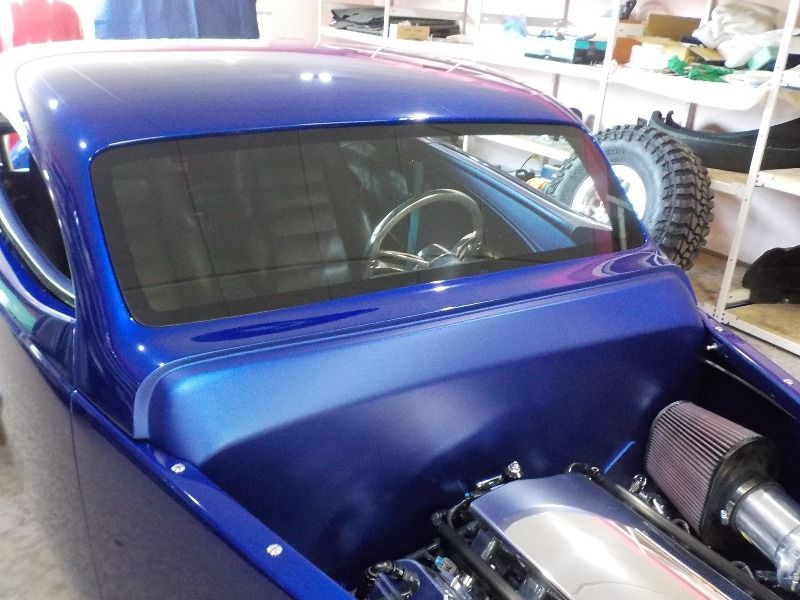

Clear coat applied multiply times to both the body and panels.

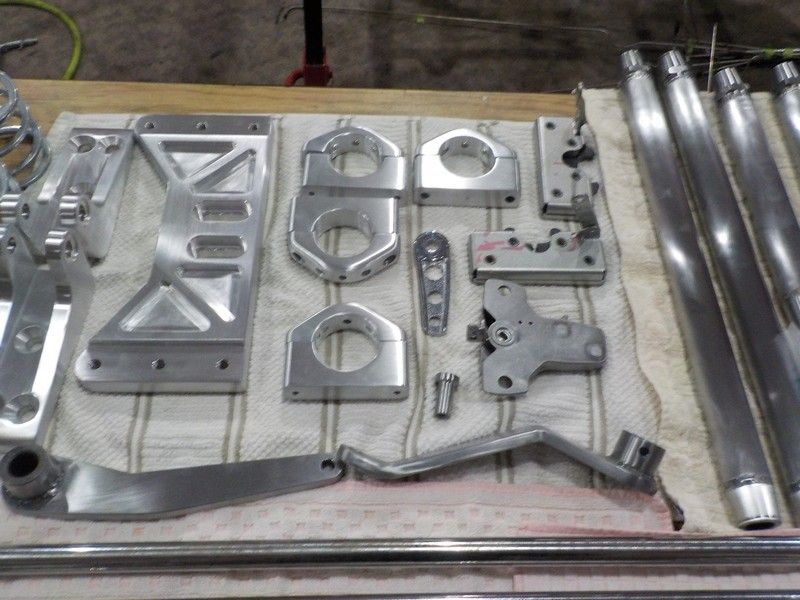

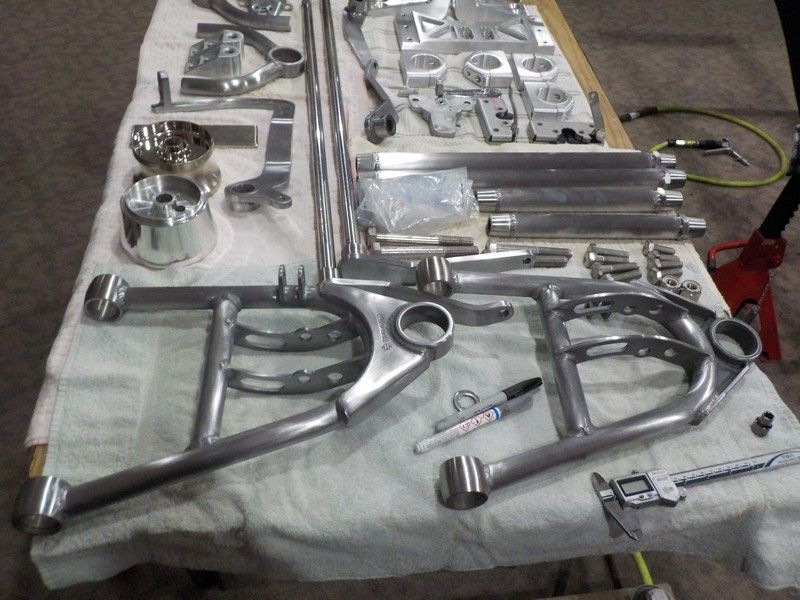

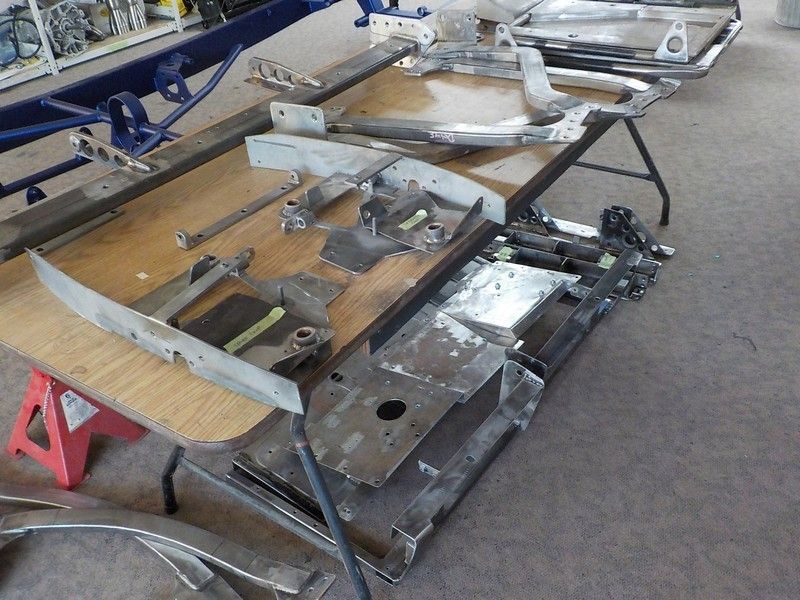

Multiple hand made and purchased parts prepper and ready to get nickel plated.

Multiple hand made and purchased parts prepper and ready to get nickel plated.

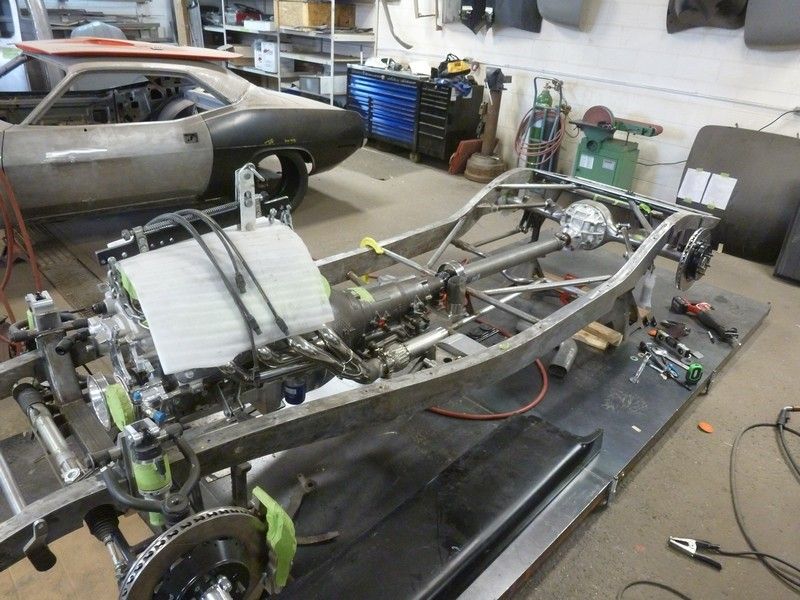

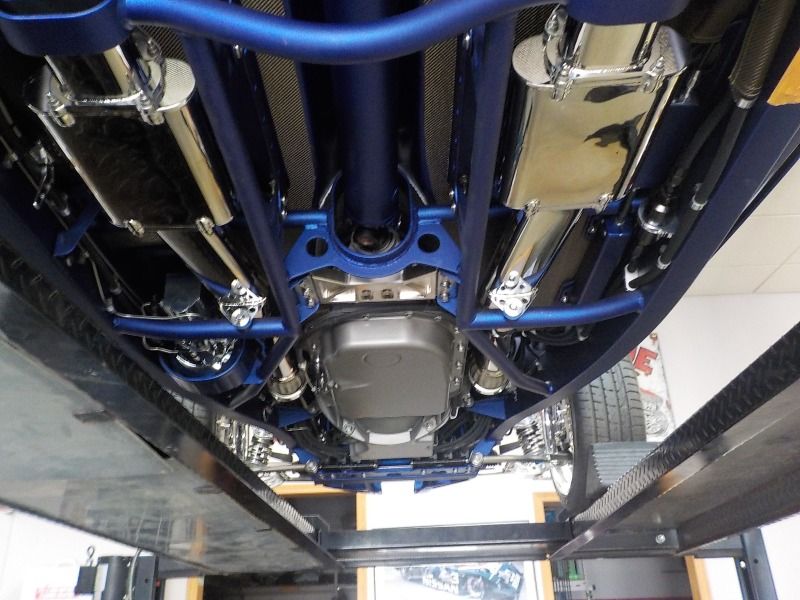

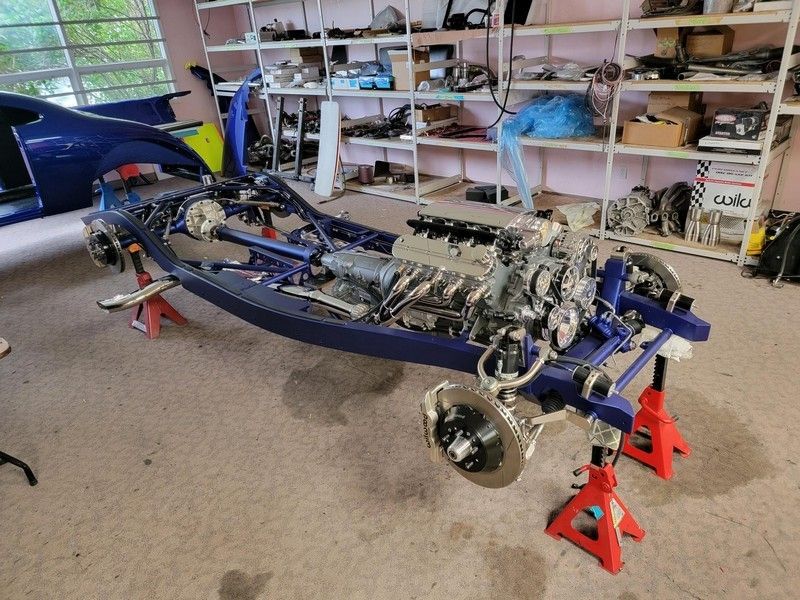

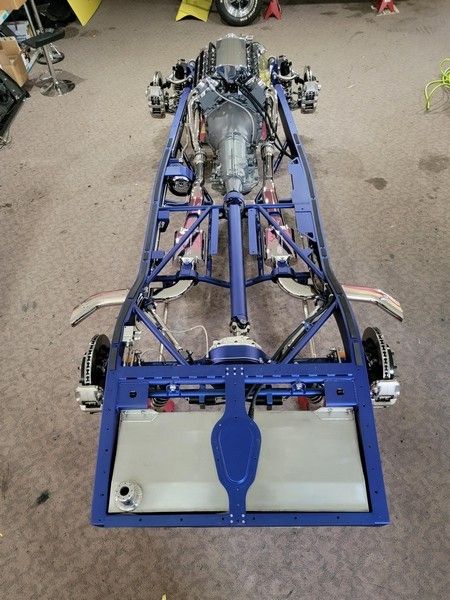

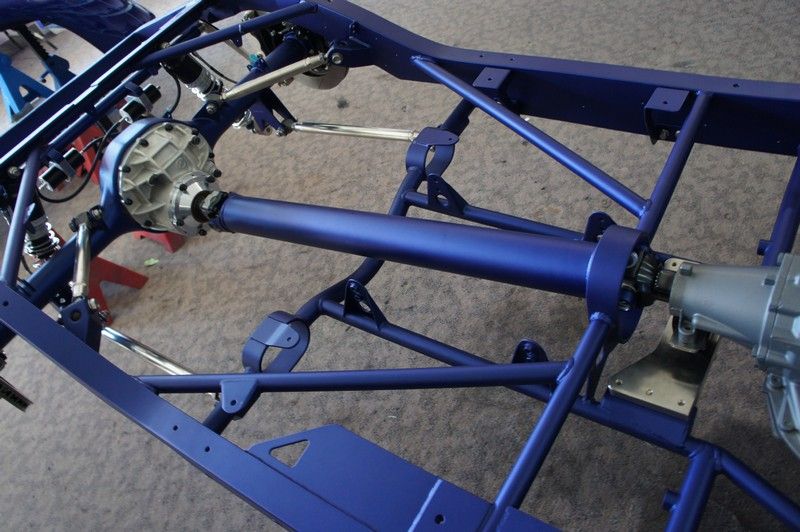

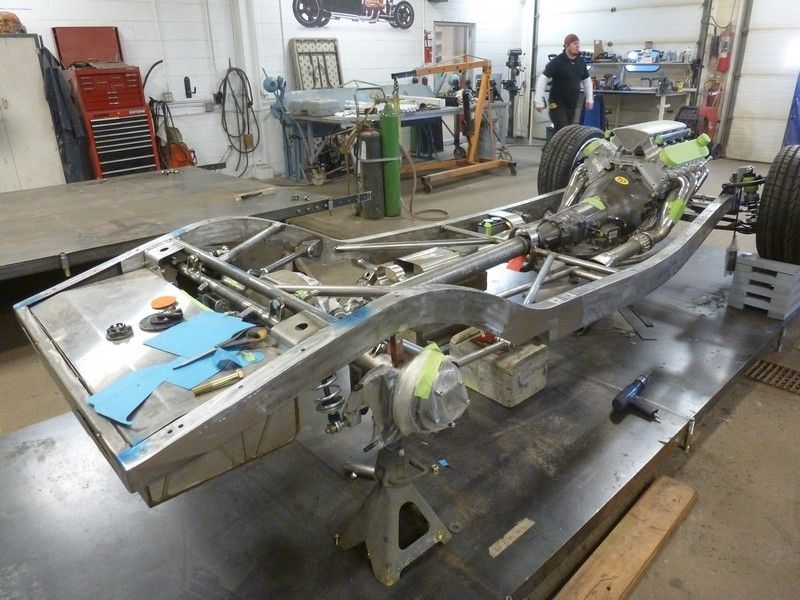

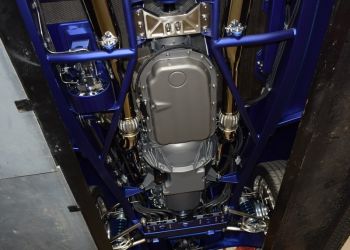

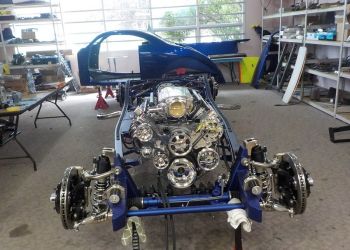

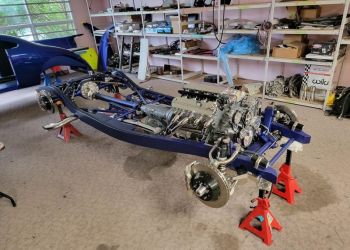

Assembly of chassis and drive line components.

Assembly of chassis and drive line components.

Assembly of chassis and drive line components.

Assembly of chassis and drive line components.

Assembly of chassis and drive line components.

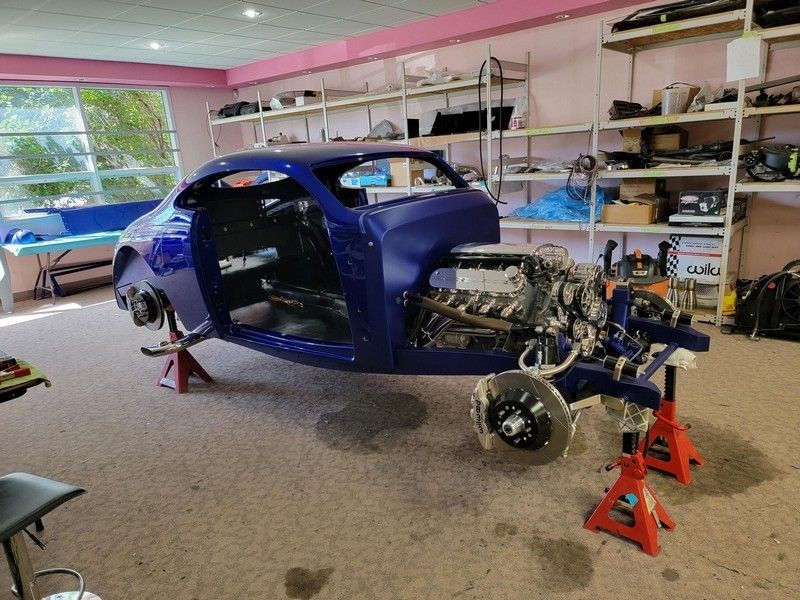

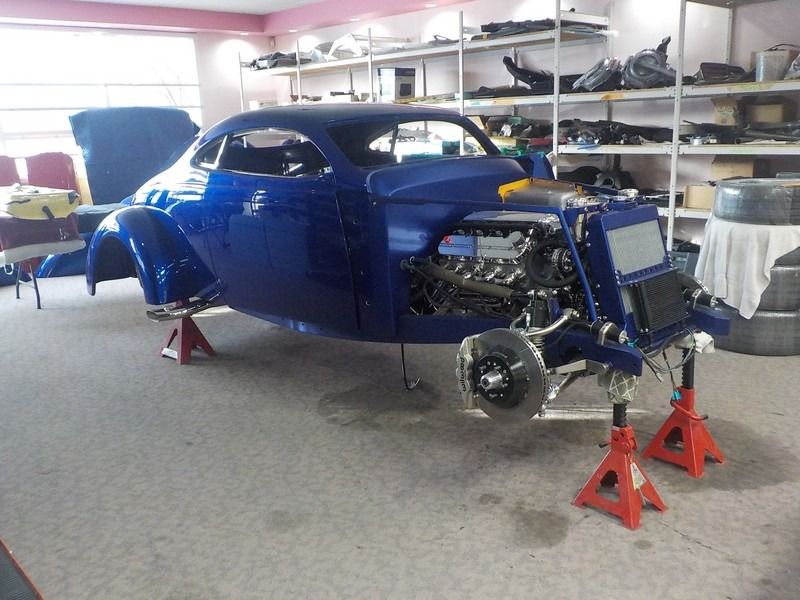

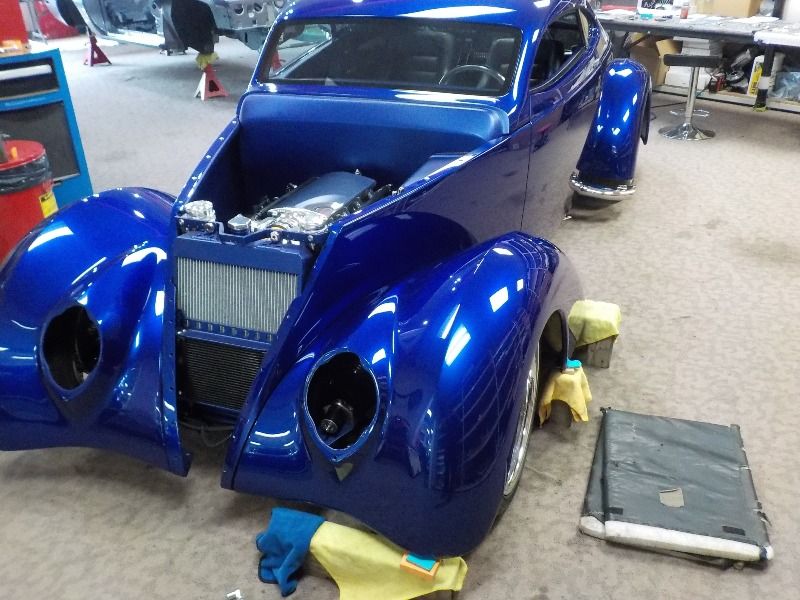

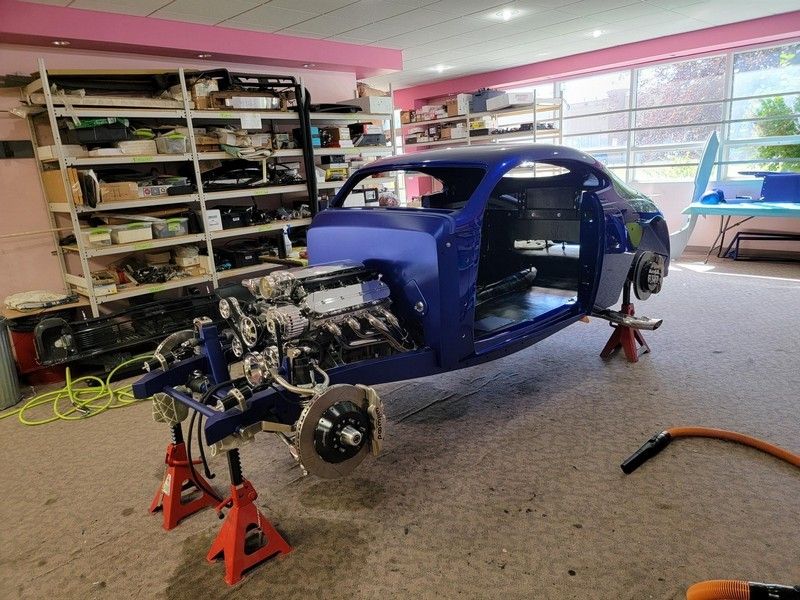

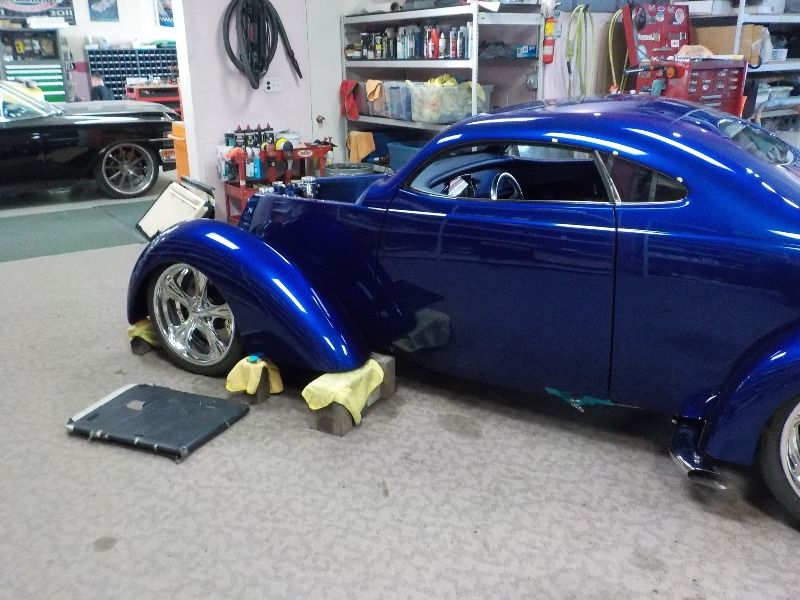

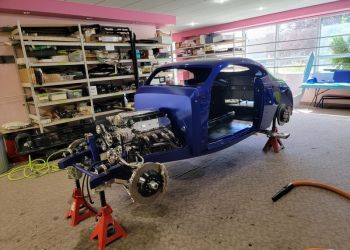

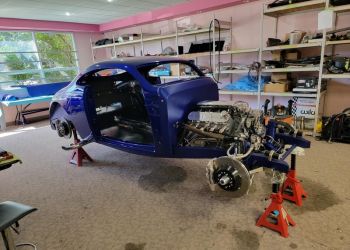

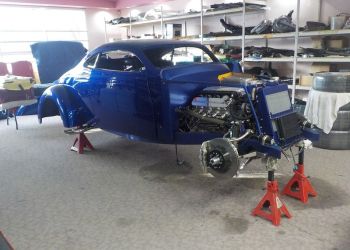

The painted body on the frame. WOW this picture cannot capture the excitement of getting to this stage. Of course this is still  much work ahead of us.

The painted body on the frame. WOW this picture cannot capture the excitement of getting to this stage. Of course this is still  much work ahead of us.

This is one of the largest builds ever done at Joey's Place.

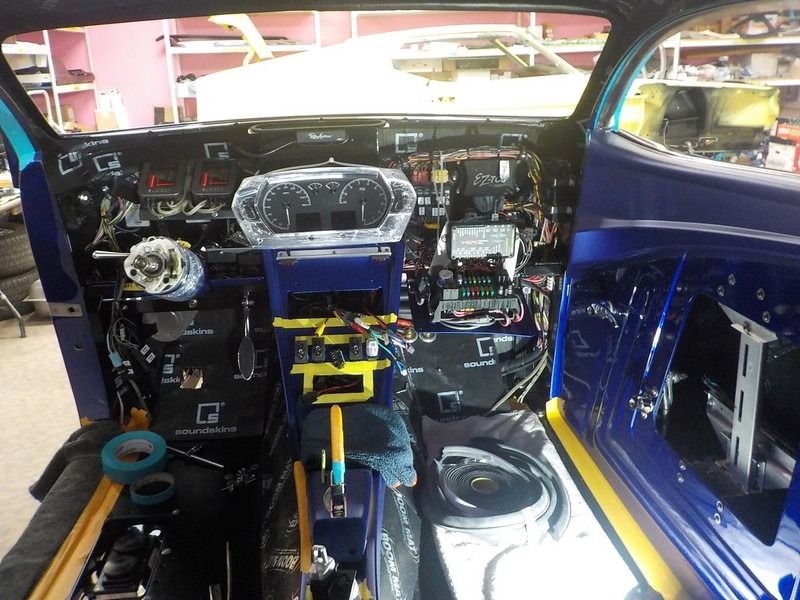

IIt is easy to see the needed attention to detail required for this intricate and complicated wiring system.

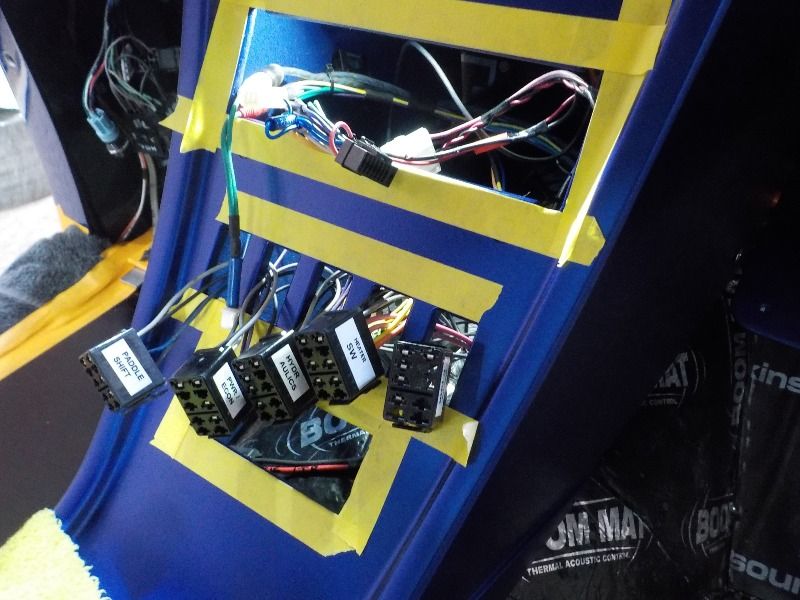

Wiring-swicthes---so mcuh work to design, build-implement the small and big details so all modules work and make sense to the build.

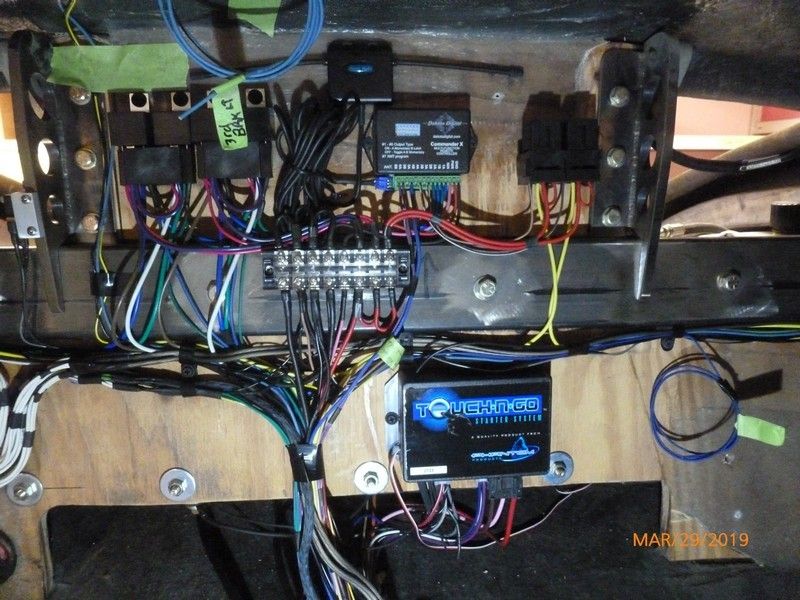

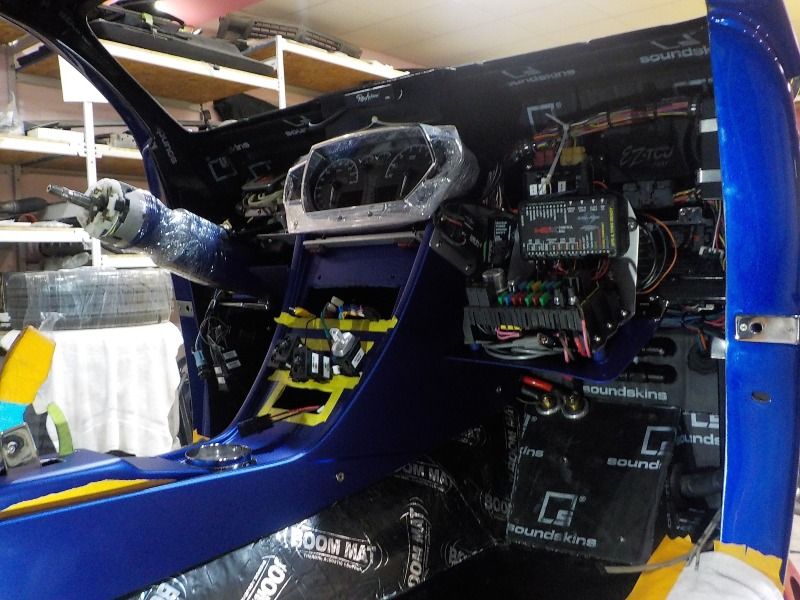

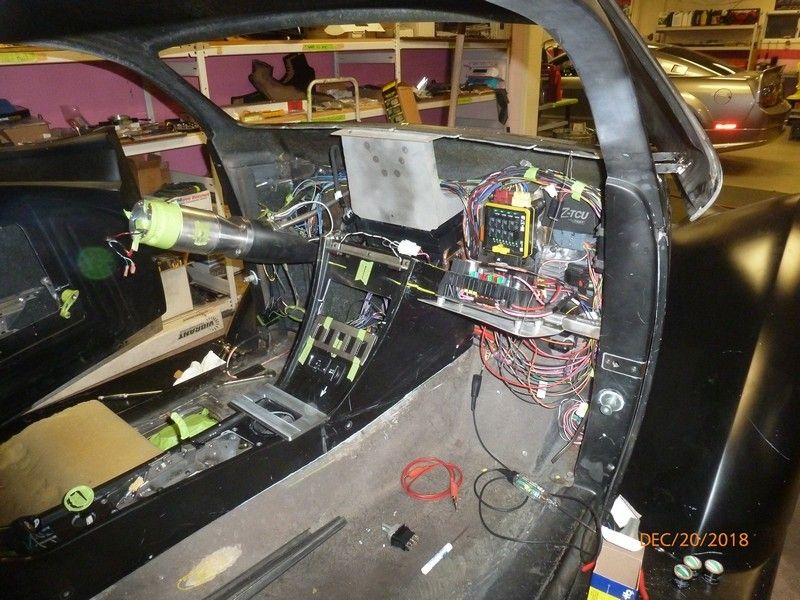

This picture shows the underdash wiring.

Transmission wiring harness heat shield.

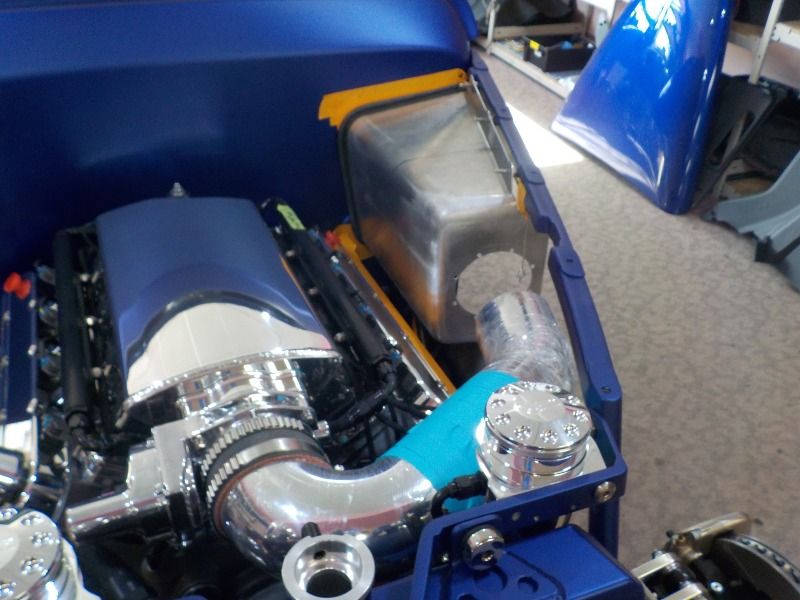

Air Intake Box

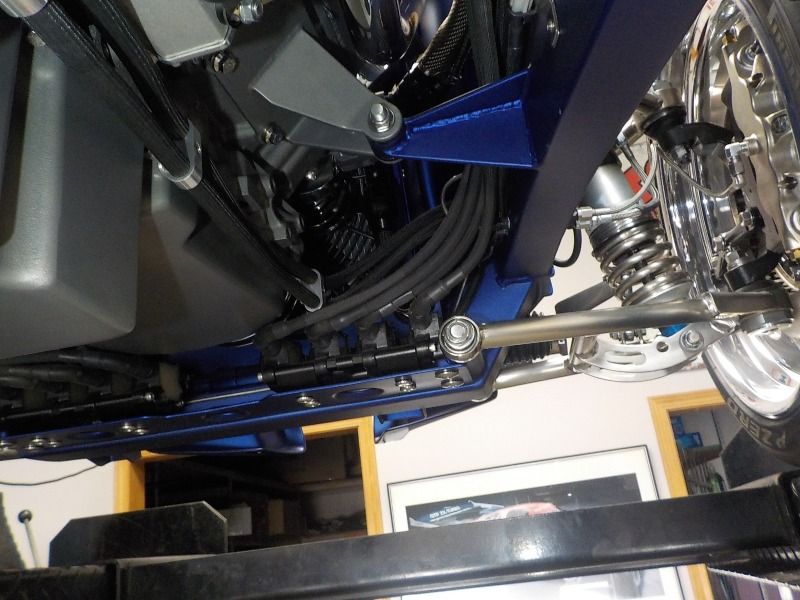

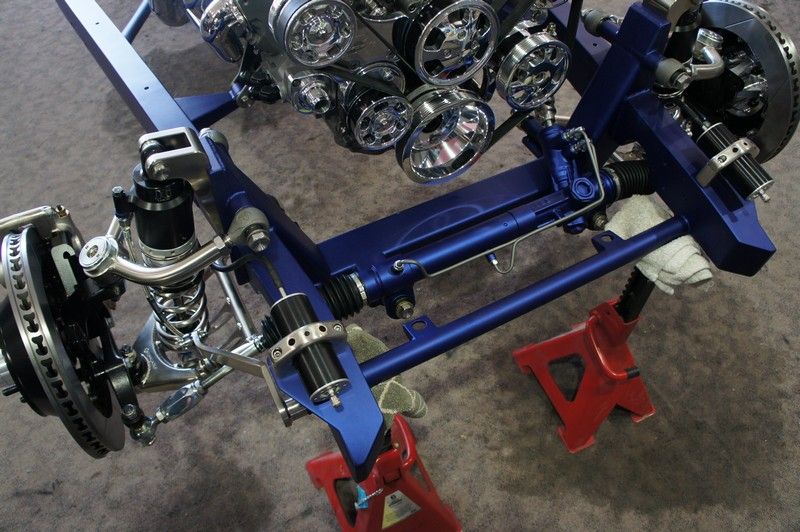

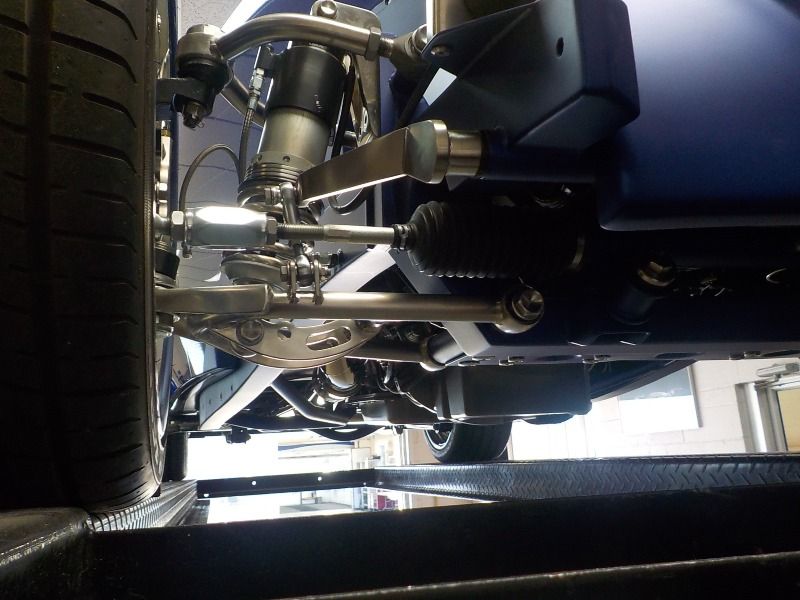

Front suspension.

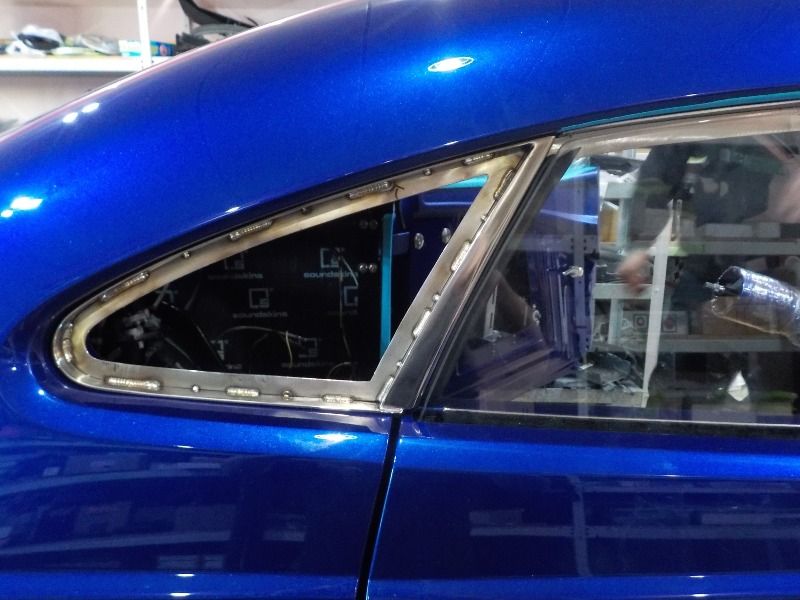

Stainless steel quarter glass holder.

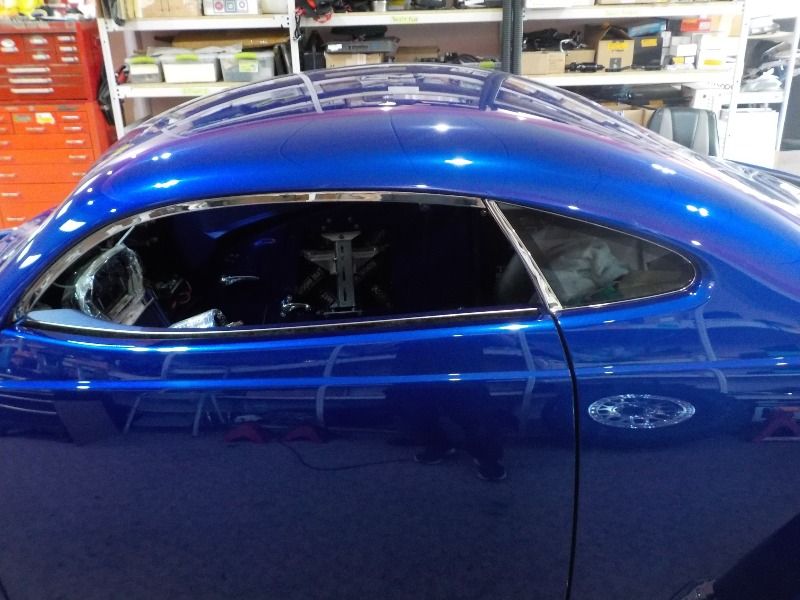

All stainless trim, and window frame are hand made.

The front windshield was custom cut to fit a 2006 Dodge Ram WS.

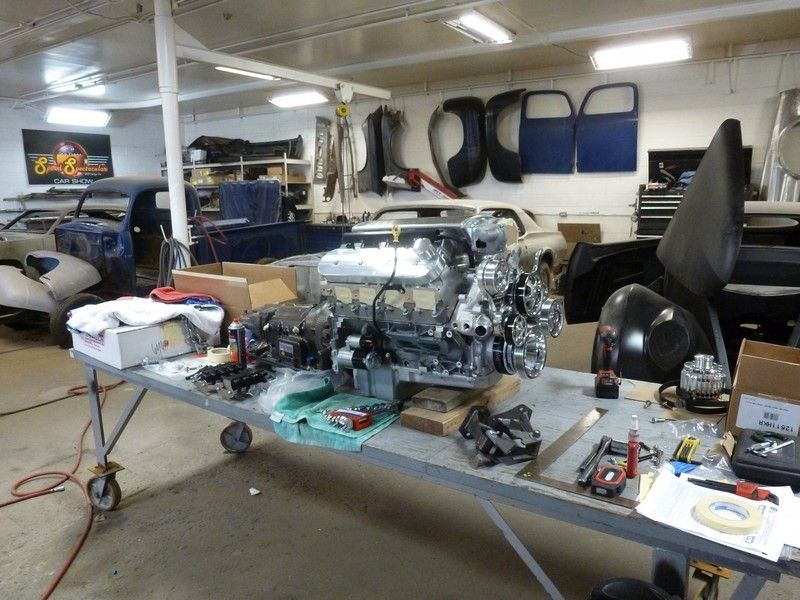

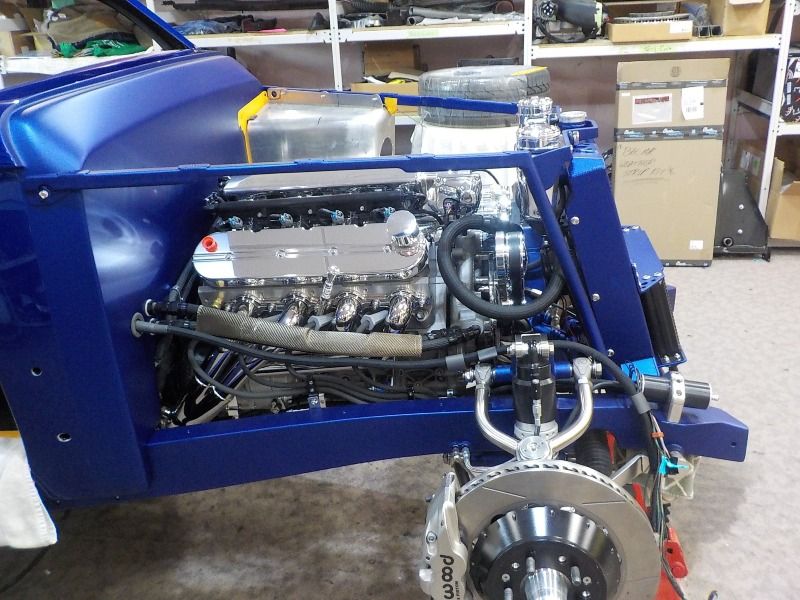

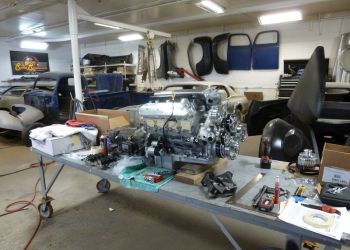

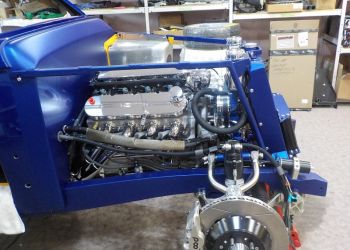

Engine assembly.

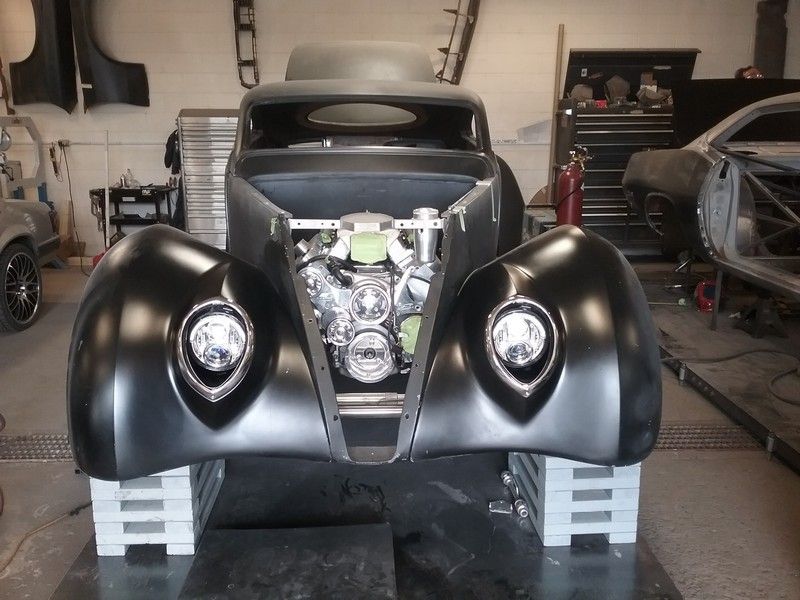

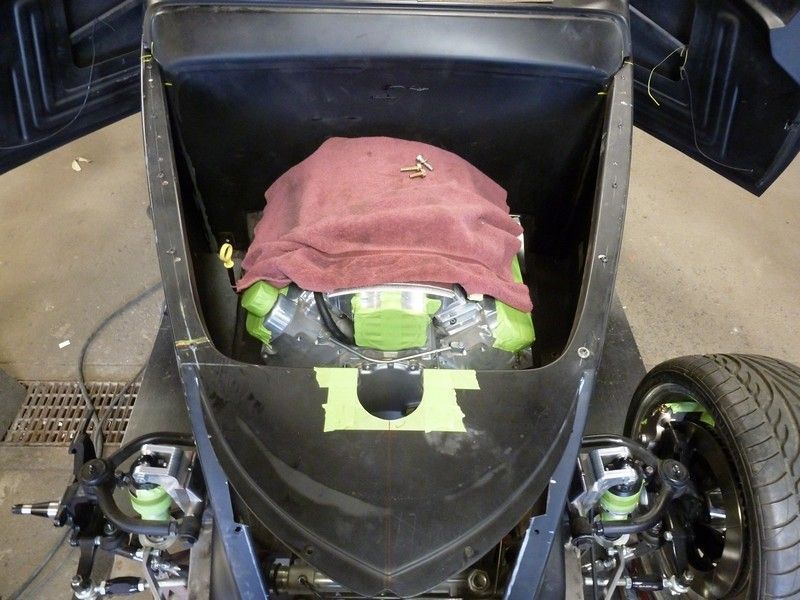

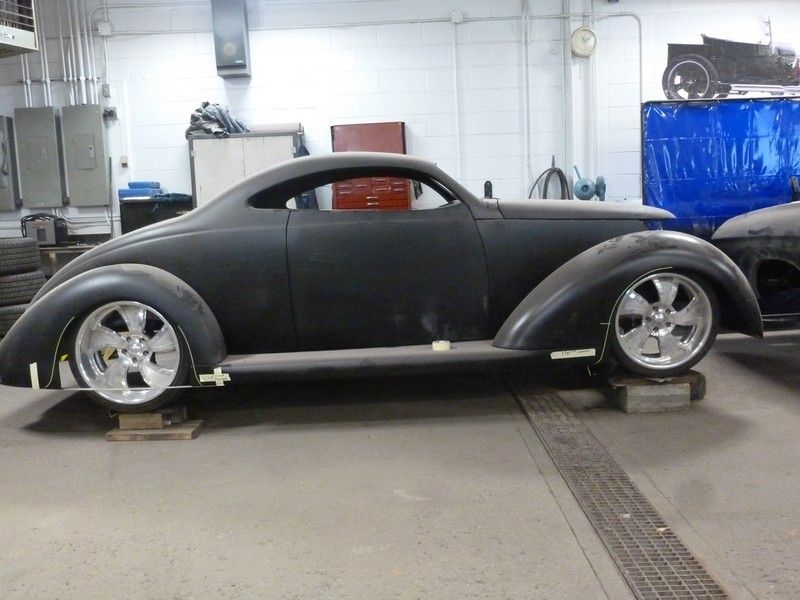

Mocking up the front fenders.

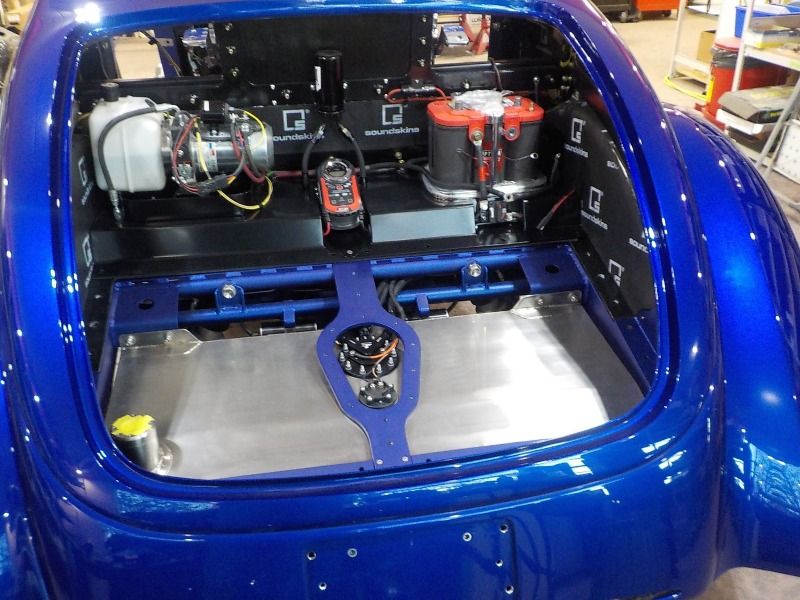

Inner trunk

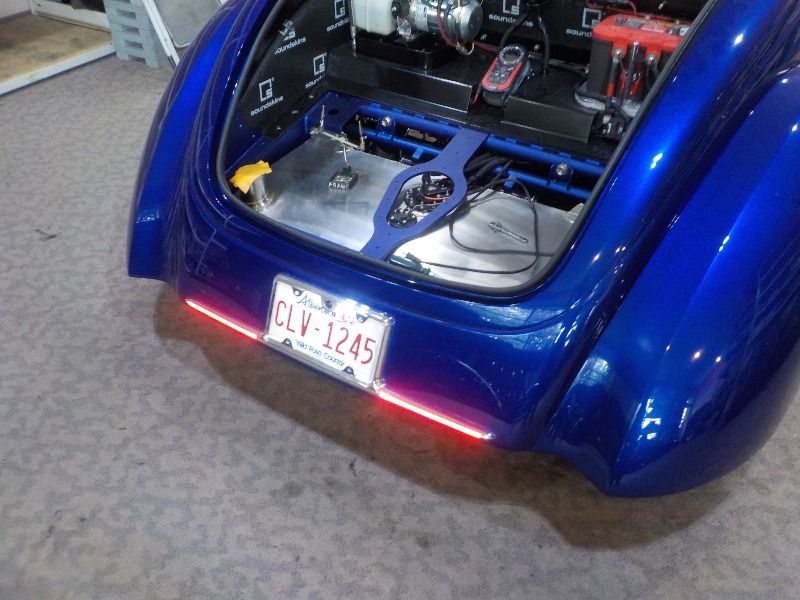

Custom design and fabrication to incorporate the signal, brake lights, and back up camera.

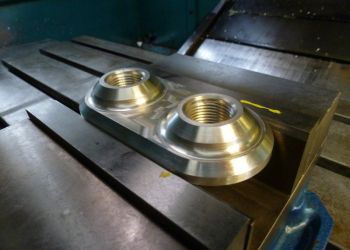

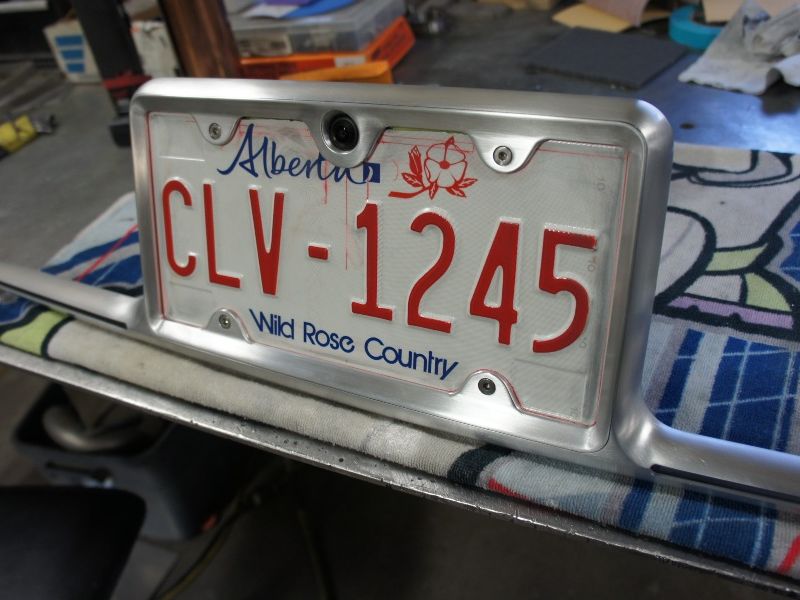

Custom CNC work for the hotrod taillight and license plate frame.
